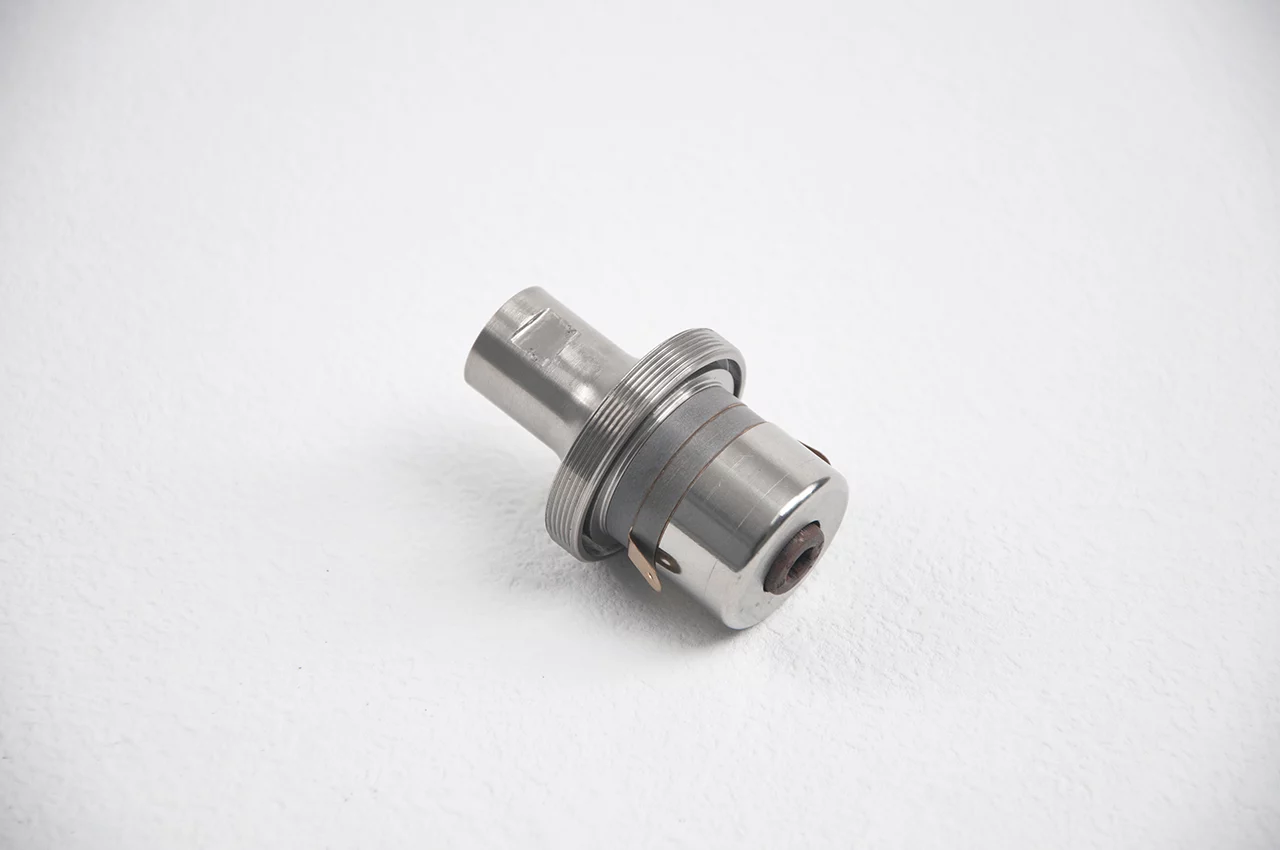

Branson 40kHz 600Watt D30ST Replacement

Original price was: $220.00.Current price is: $184.00.

16% Off

  • For bulk order price please contact our sales expert.
  • Poreless, high-density, military-grade piezoceramics
  • Excellent electro-acoustic conversion efficiency
  • Minimal thermal dissipation and power losses
  • Large range of working temperature
  • High reliablity
  • Fully compatible with Branson® 40kHz ultrasonic cutter
Categories: , Tags: SKU: Branson 40kHz 600Watt D30ST Replacement

Description

Technical Details

Electrical Specification Data Result
Transducer Model No.: Branson Replacement 40kHz 600Watt D30ST
Frequency (Fs ± 0.5kHz) 40 kHz
Transducer’s Maximal Diameter:
Maximum Height /Length:
Φ43 mm
64 mm
Flange Size: 43mm
Piezoceramic Ring Diameter (mm) Φ30 mm
Piezoceramic Ring Quantity (pc) 2 Pcs
Impedance (Ω) Transducer : 5 Ω
Capacitance (C±10%pF) 2600 pF
Input Power (Watt) Max Rated Power: 600Watt
Amplitude (μmp-p) Transducer : 6 μmp-p
Front Mass Metal Cemented Carbide
Back Mass Metal Titanium Alloy
Joint Bolt /Gain size M8   default M8
Net Weight (gram) 180 gram
Total Height /Length (mm) 64 mm
Remarks:
Available optional accessaries:
Aluminum Booster
Titanium Horn /Sonotrode
Ultrasonic Generator (CE)
Friendly Reminder

* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.

* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.

* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.

for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.

Additional information

Weight 0.2 kg
Dimensions 7 × 4 × 4 cm
Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
