Industrial Type Ultrasonic Homogenizer

Ultrasonic Processor for Large Volume and Industrial Applications:
Designed for 24×7 heavy duty working.
Cooling fan integrated in ultrasonic converter & ultrasonic generator.
20kHz, 2000Watt Maximum
Up to 50 liters on a batch basis
Typical applications include industrial mixing (including large scale processing of nano-materials), and industrial processing (including emulsifying, degassing, and large scale dispersions.)

* Energy and temperature set-point control
* Automatic tuning
* Digital wattmeter
* Full function process timer
* Variable power output control

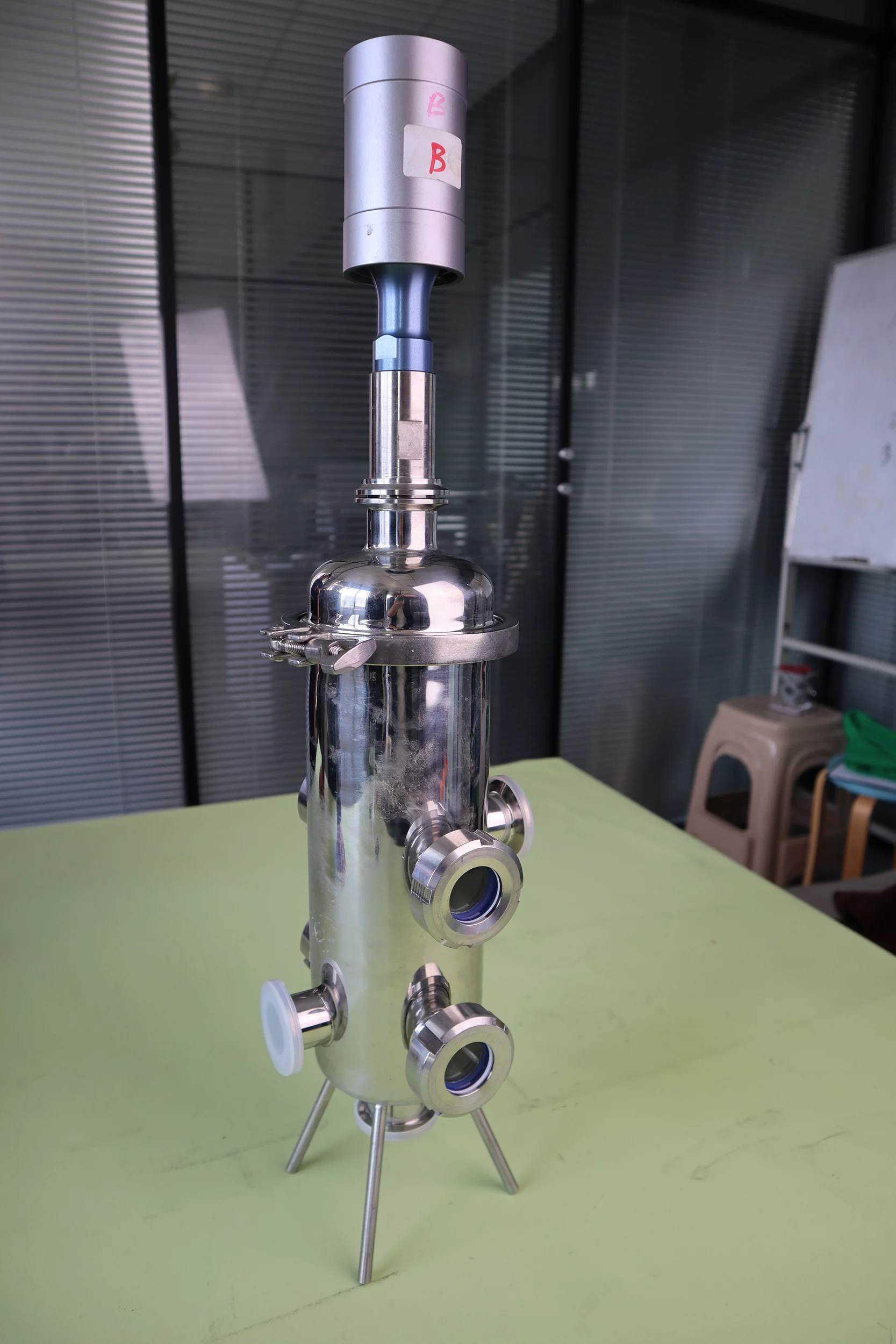

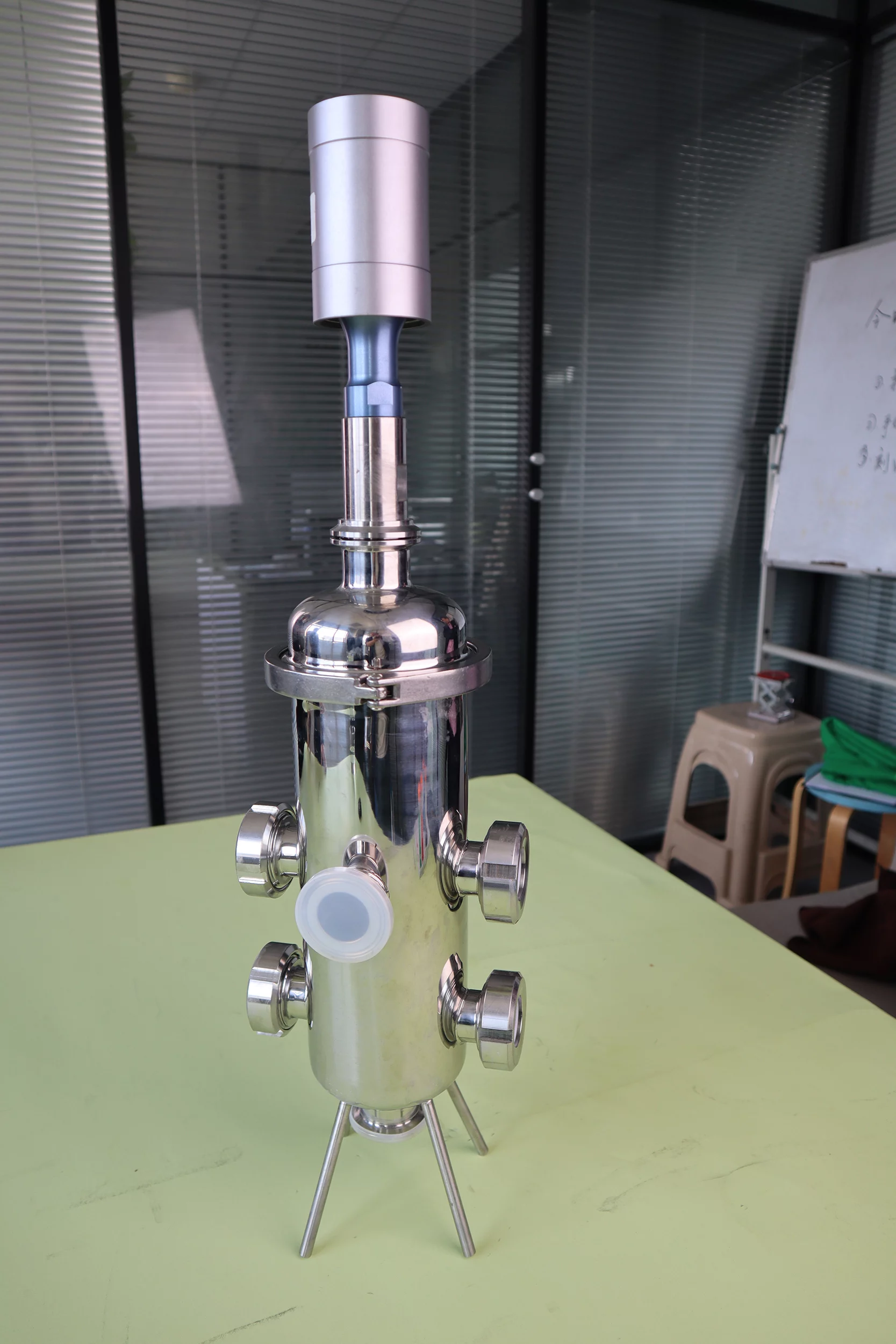

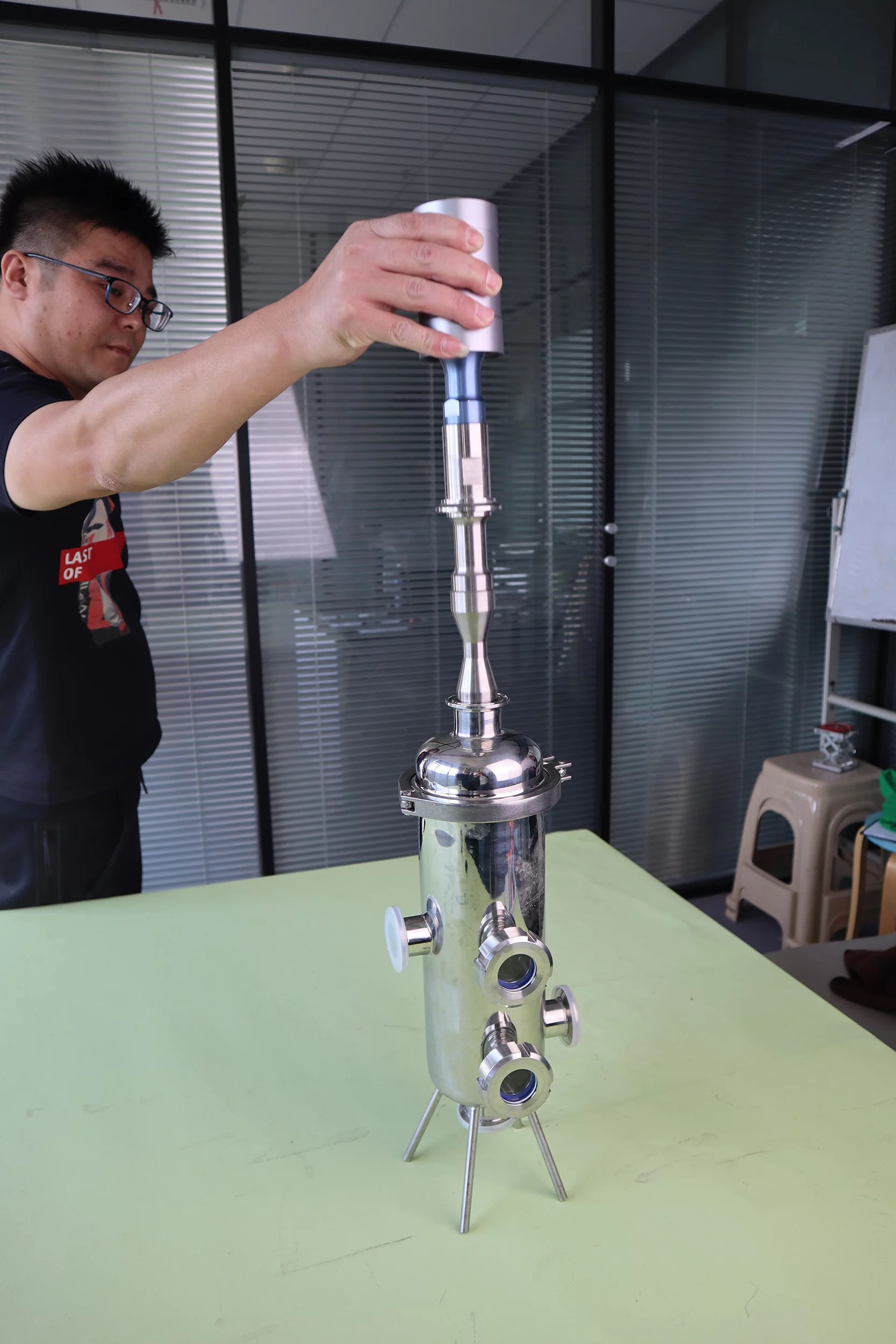

This type Homogenizer is our highest power system for the most difficult applications. This model includes a 1.5” diameter, 15” long probe with a 100μm maximum amplitude. A variety of probe options are available including the flow cell inline processing accessory. Electrical requirements are 220V, 50/60Hz, single phase, 30A.

Optional Accessories:
* Support stand
* Converter clamp
* Optional temperature probe
* Temperature monitoring

Industrial Type 20kHz 2000Watt
Ultrasonic Generator 20kHz 2000Watt ( heavy duty working)
Ultrasonic Converter 20kHz 2000Watt ( Integrated cooling fan inside)
Probe Materials Titaninum Alloy, Amplitude: 25μm
Ultrasonic Probe Size Φ40mm diameter,  290mm Probe Length
Other length available.
Φ50mm probe available.

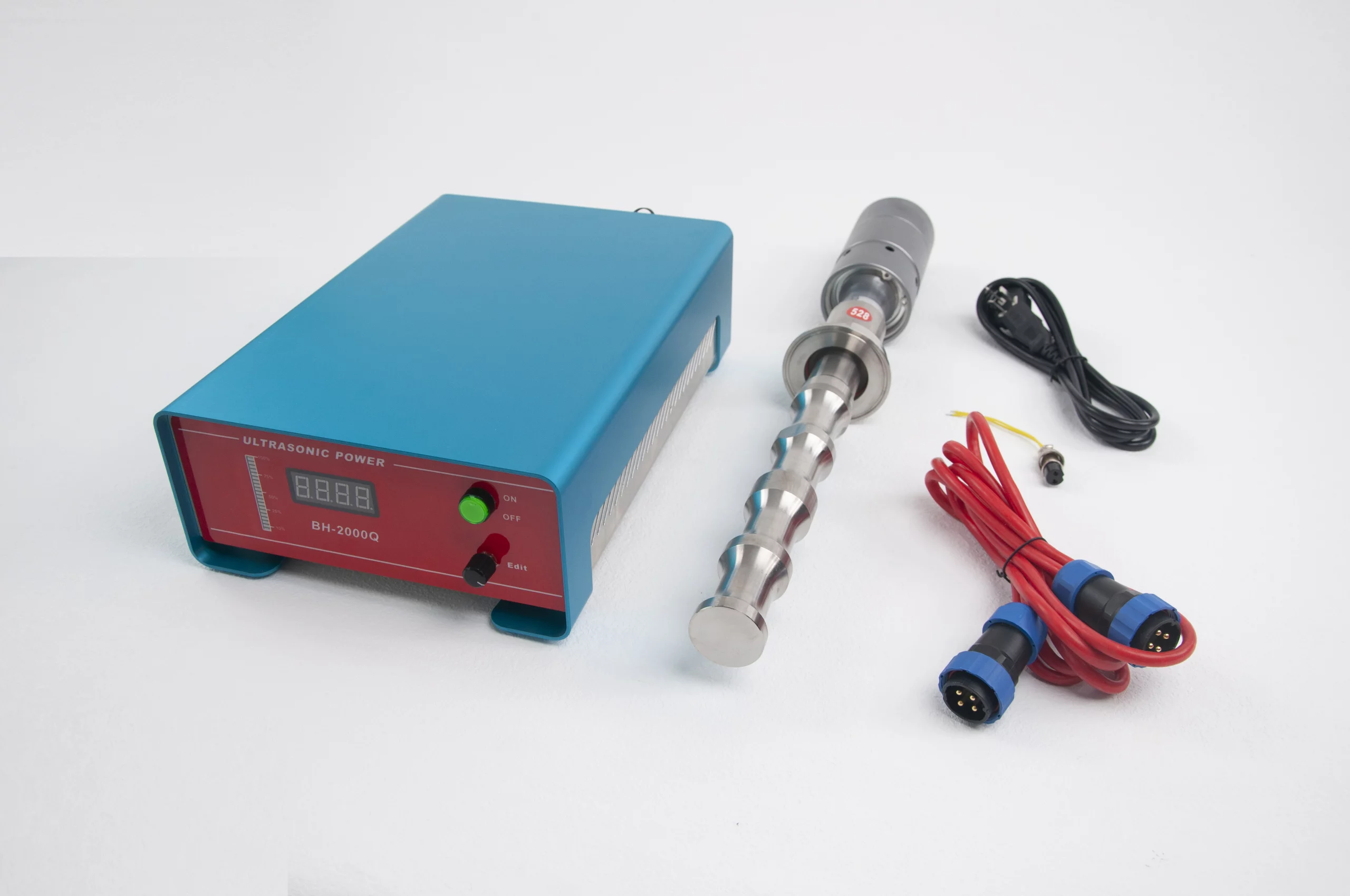

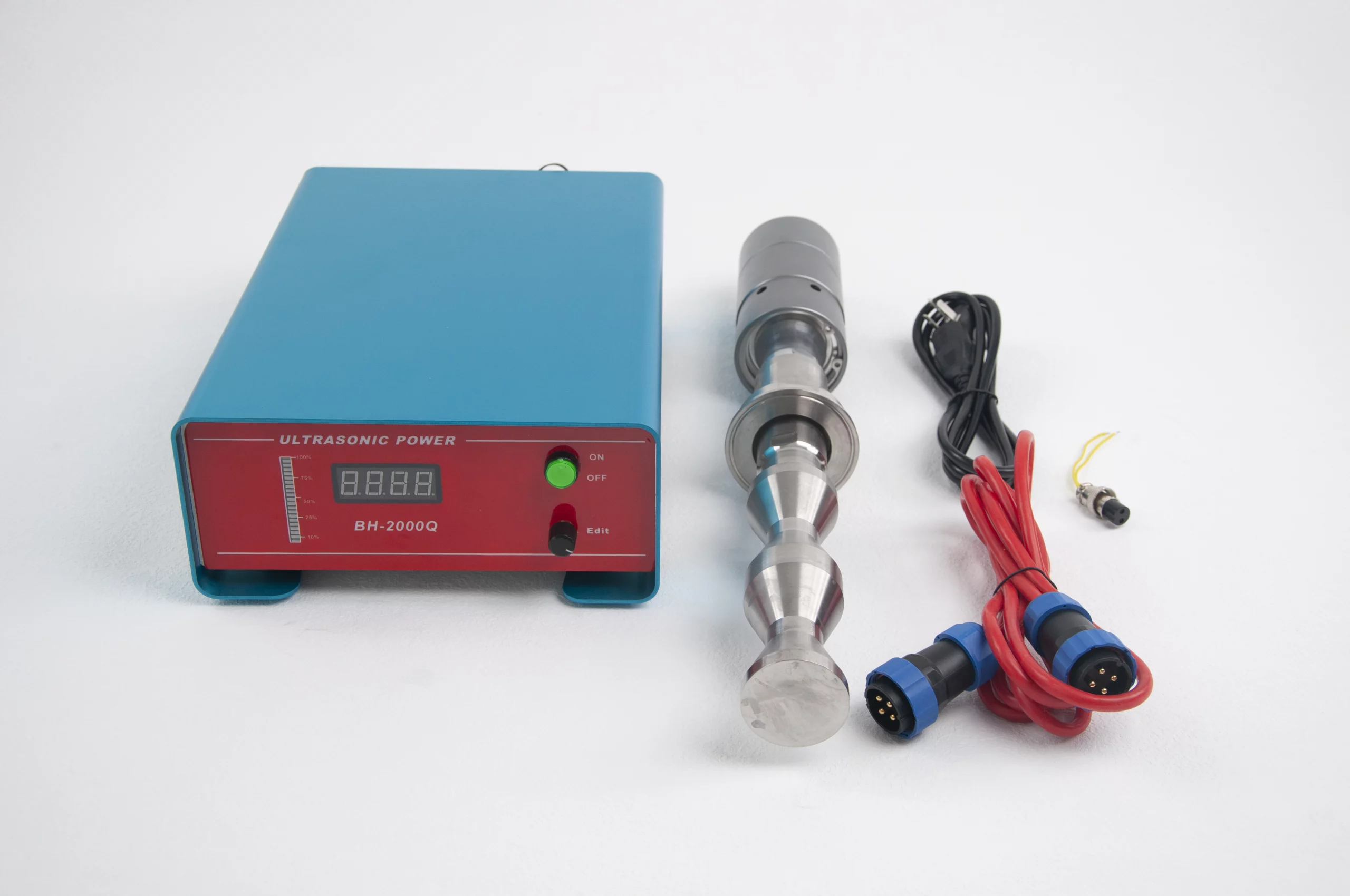

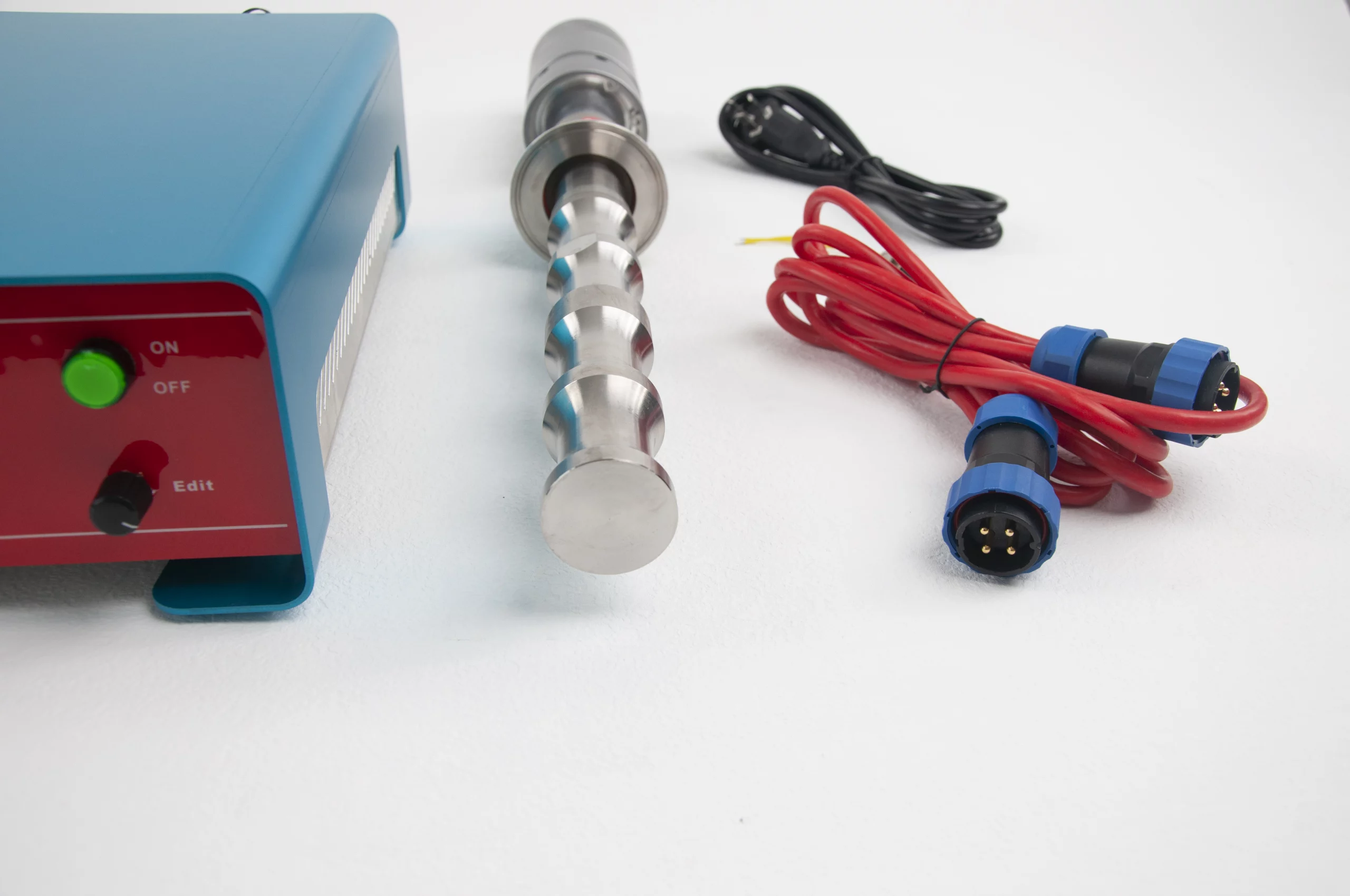

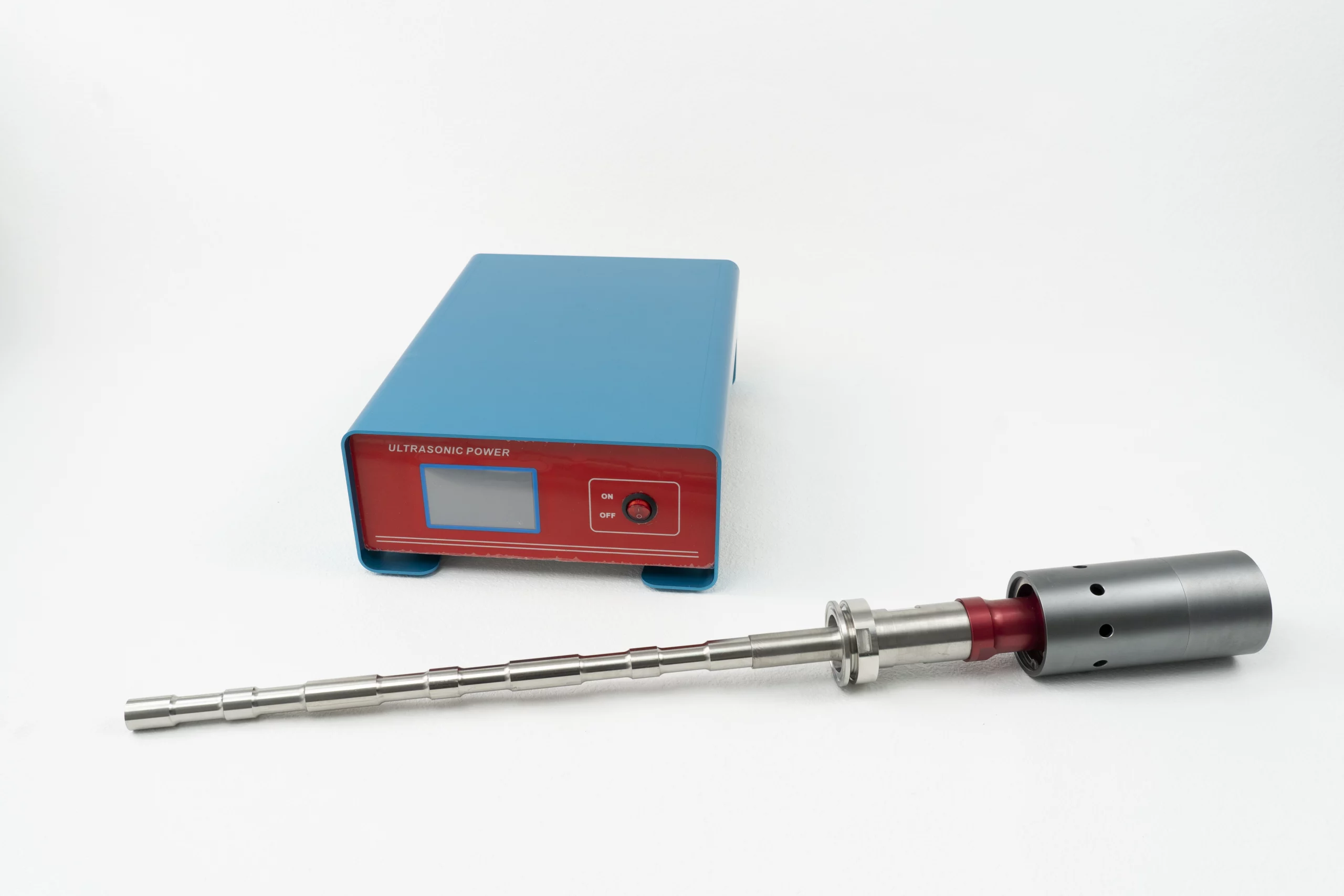

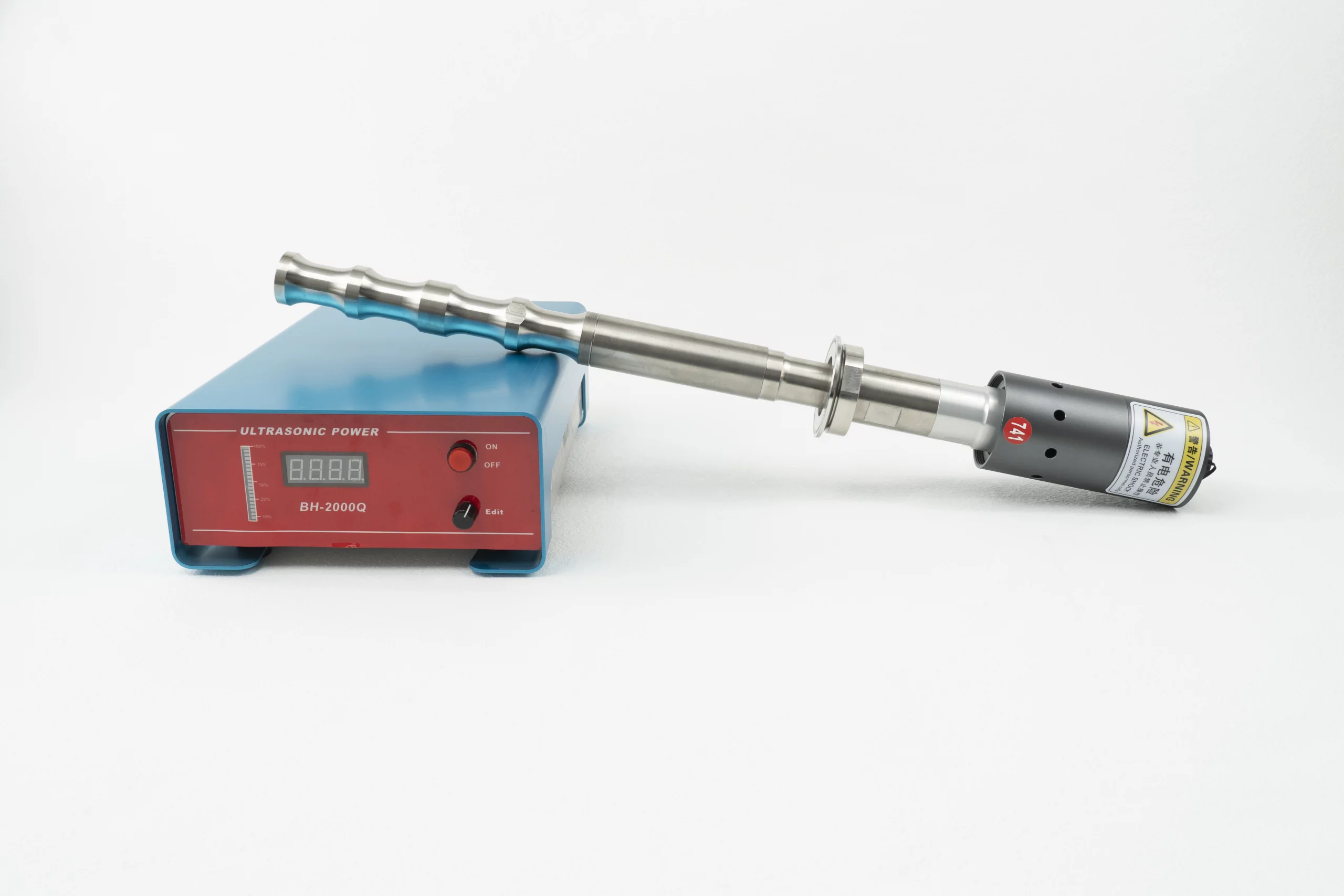

Packing: 1 set ultrasonic generator 20k 2000w
1 set ultrasonic homogenizer ( converter, booster, probe)
1 power in plug & wire, 3 pcs fuse wire
1 pcs remote control connector

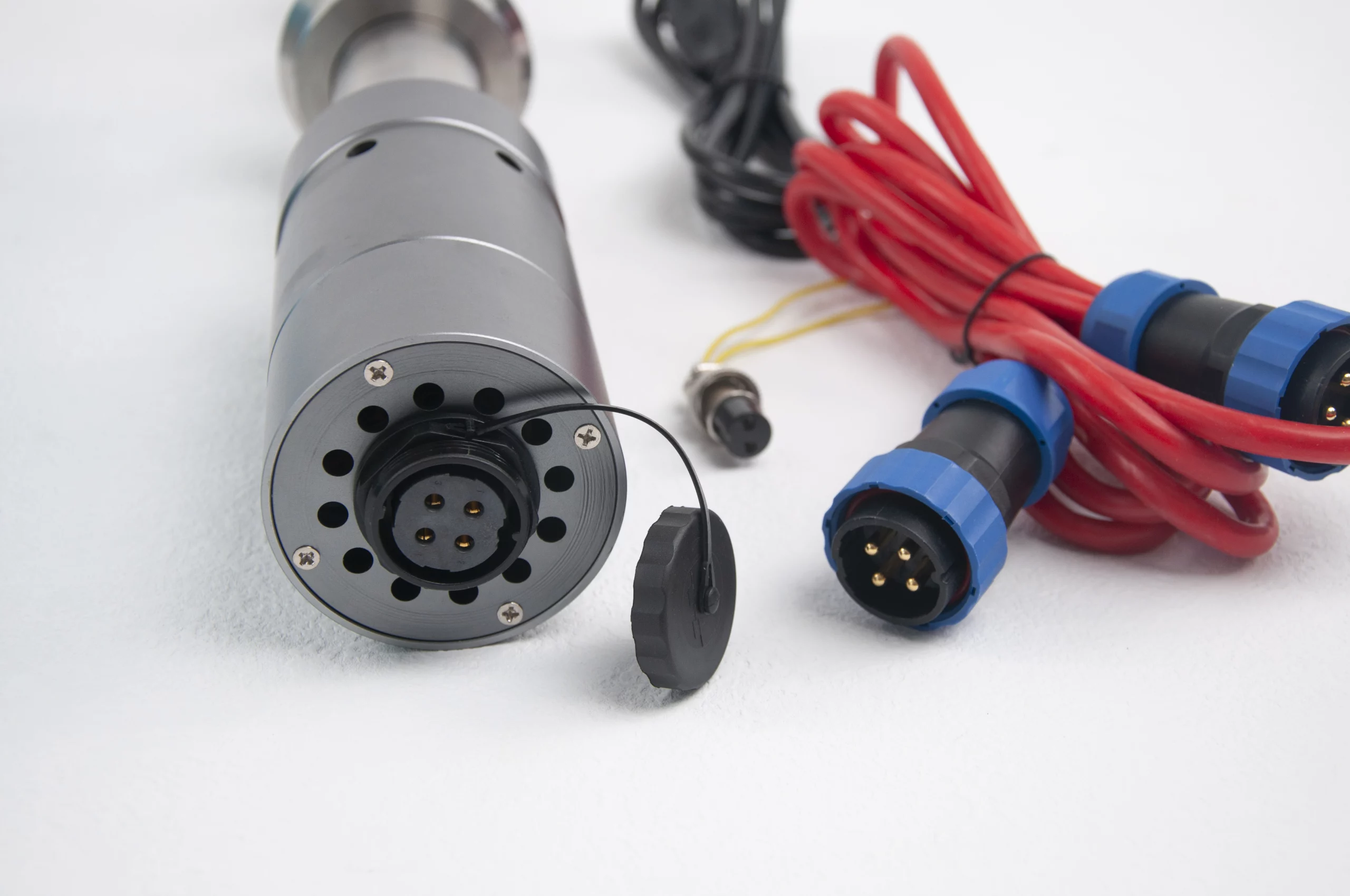

2 meter HF cable for converter connection
Processing time:
50% oil & 50% water Typical time: 25 minutes for 50 liter

Video Introduction

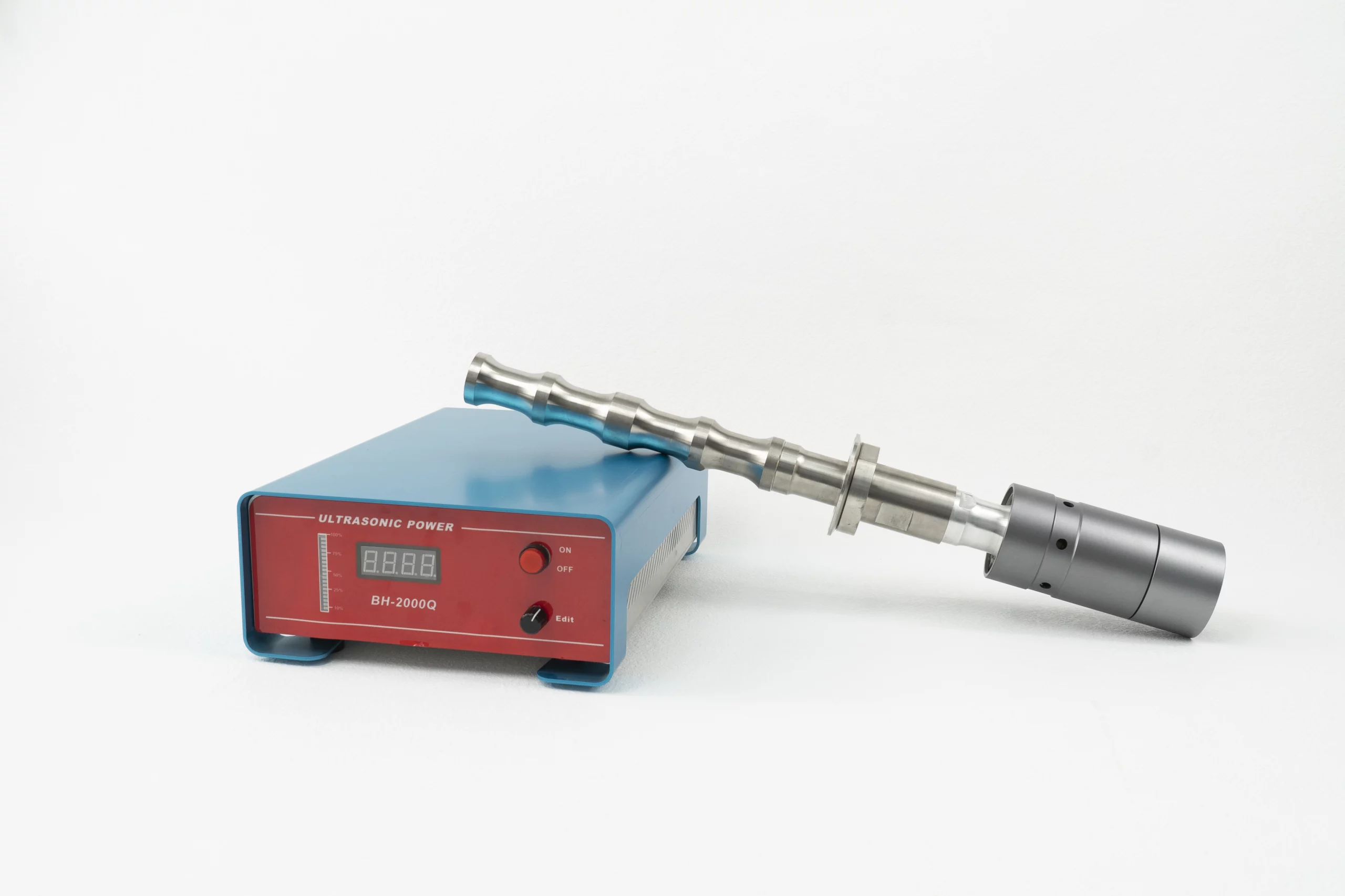

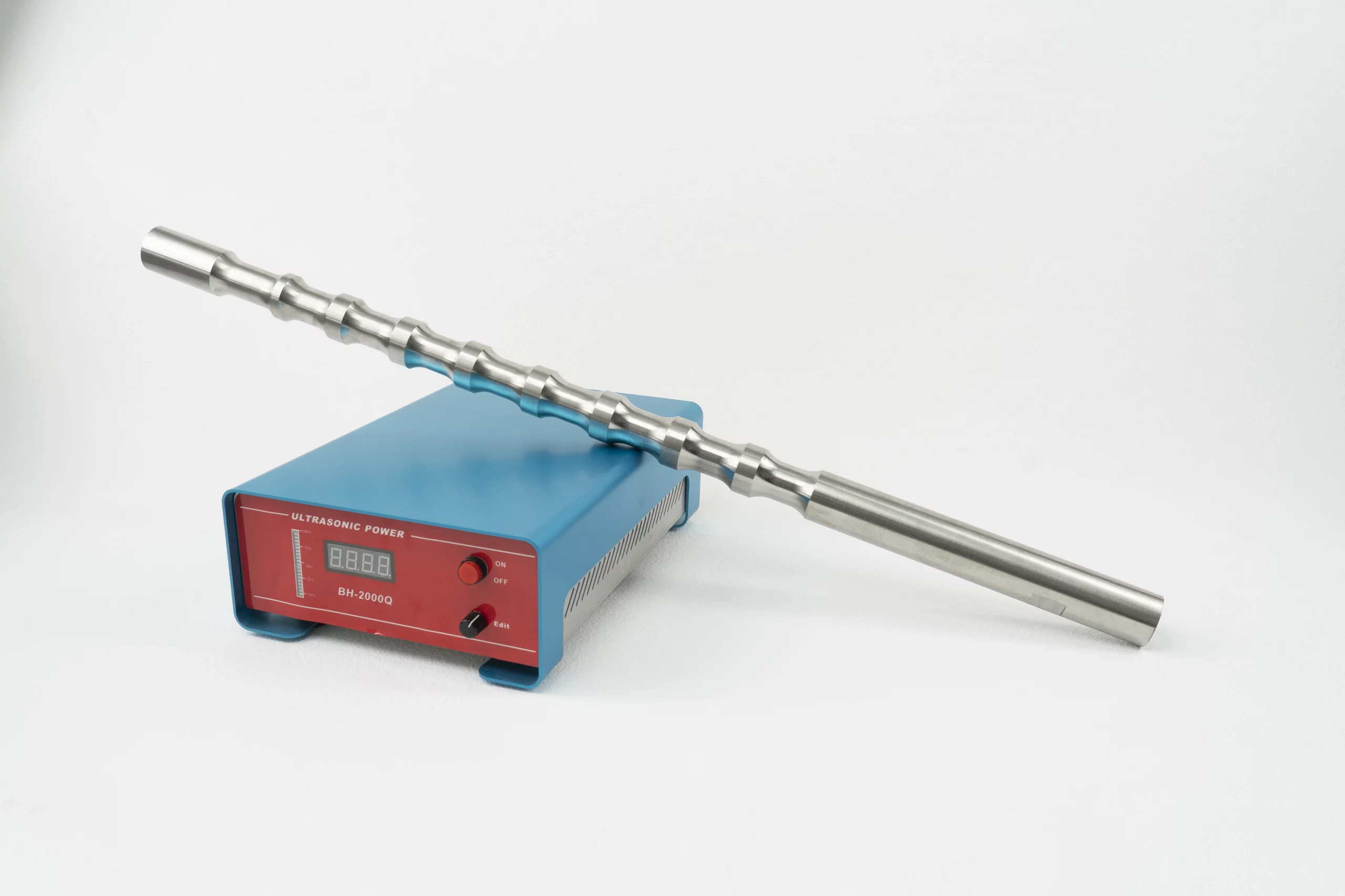

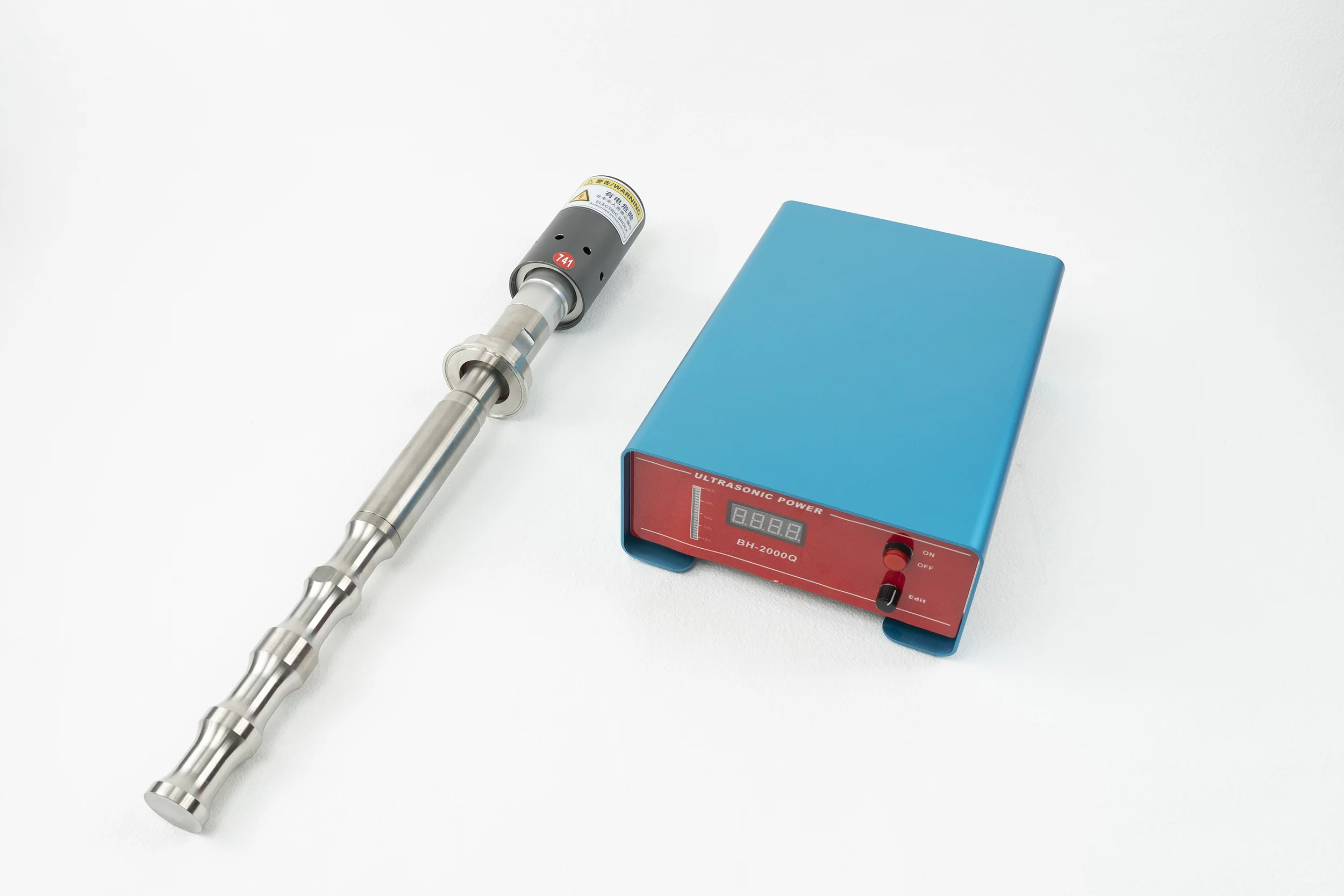

Photo Gallery for Industrial Type Ultrasonic Homogenizer
