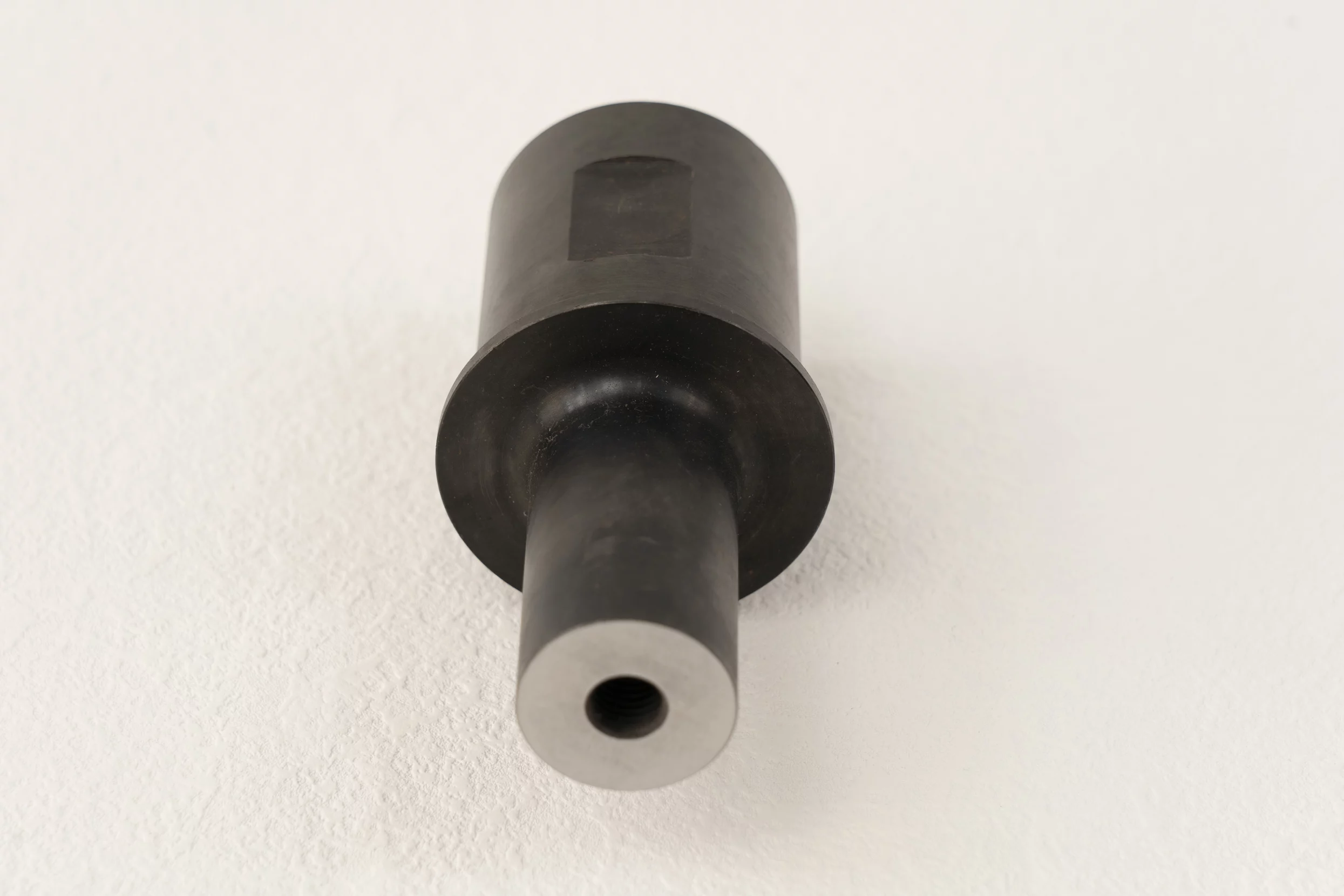

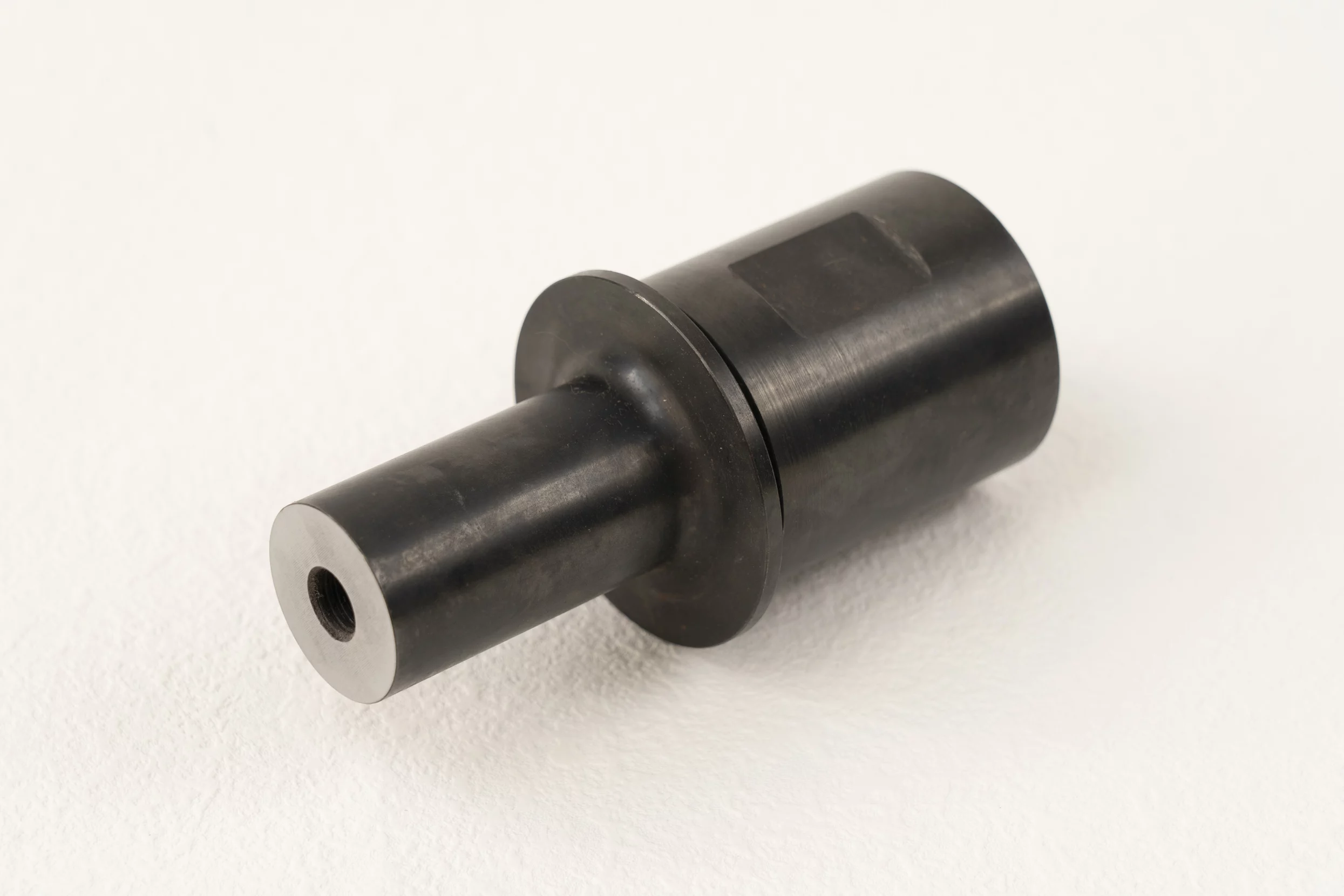

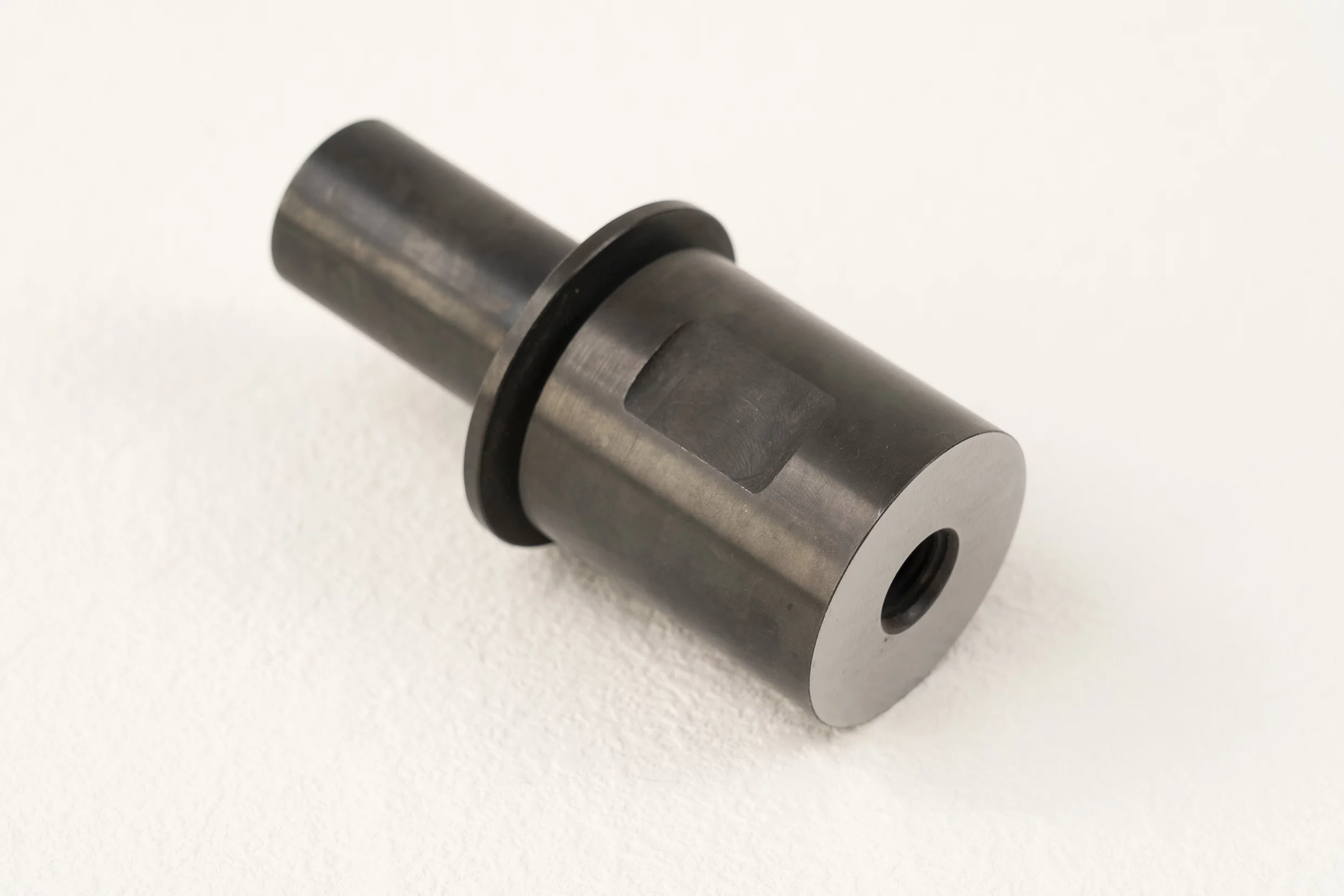

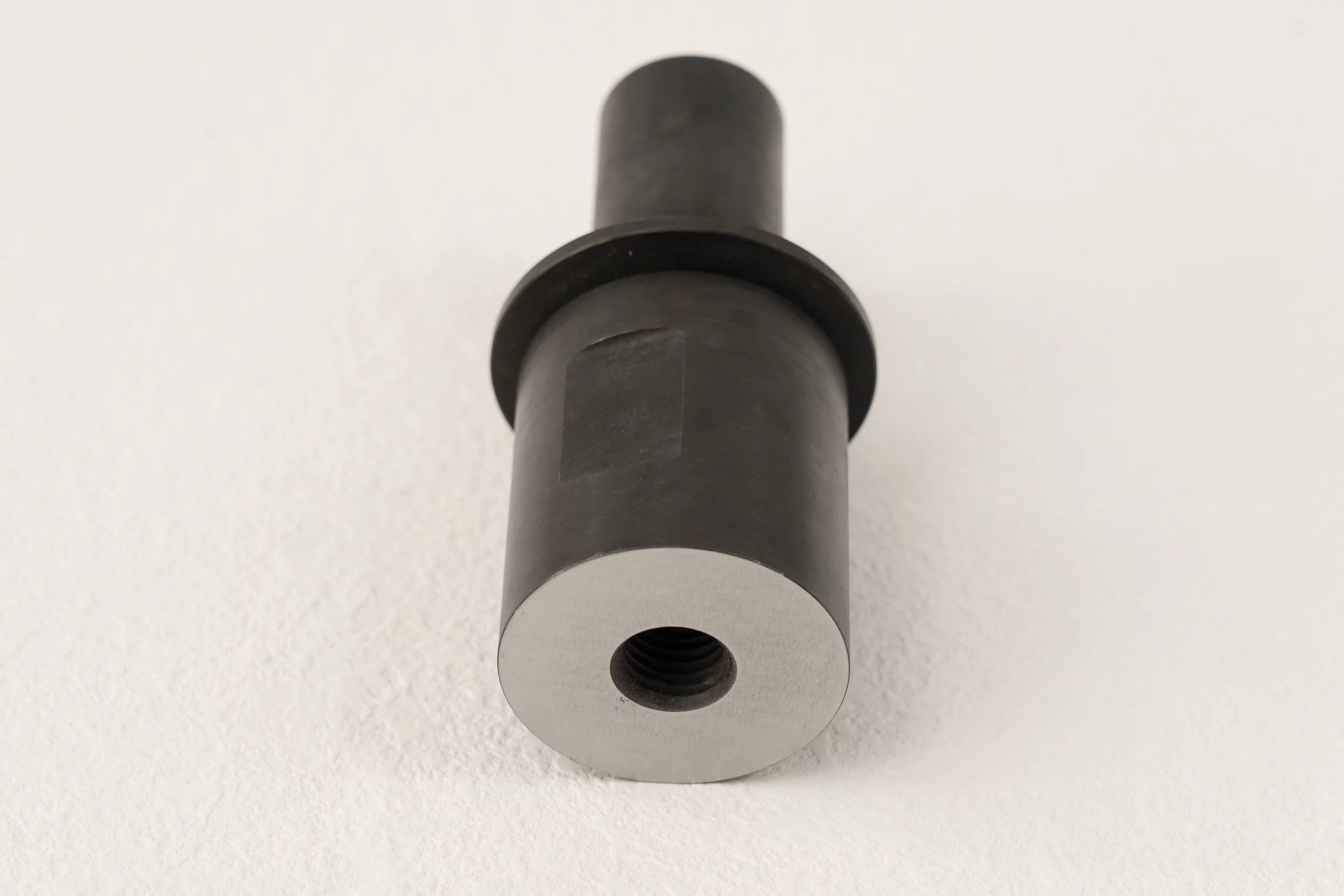

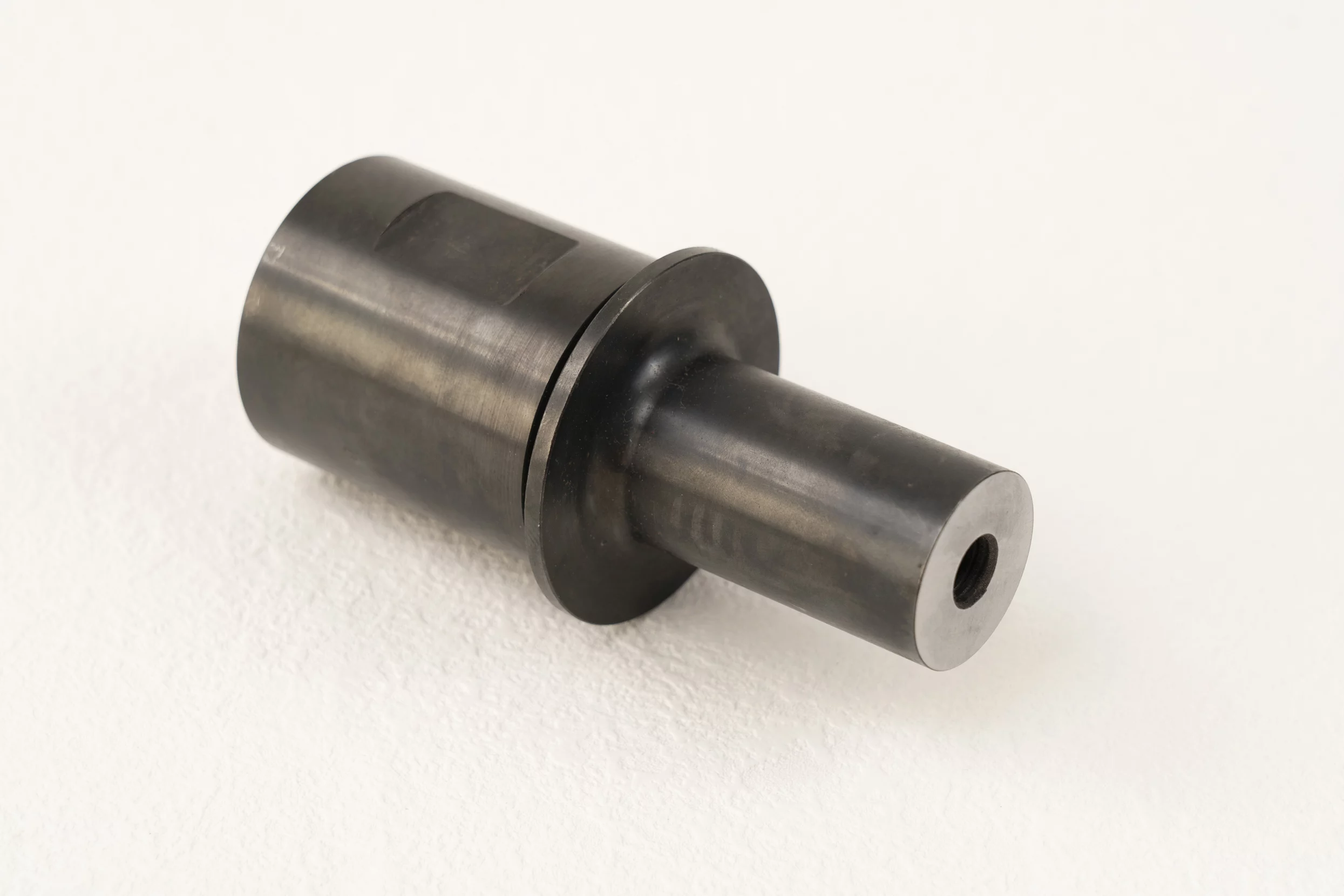

20kHz Booster; Gain 1:3

$165.00

8% Off

  • 20kHz Ultrasonic Welding Booster for Horn Amplifier.
  • Hard Steel Materials
  • Booster Gain: 1:3
  • Please contact our sales before placing order
  • Titanium & Solid Mount Titanium Boosters also Available! Call for Availability.
Categories: SKU: 20KHZ-BLACK-GAIN 1:3

Description

Technical Details

Electrical Specification Data Result
Item Name: Ultrasonic Welding Booster for Horn Amplifier
Item Part No.: 20KHZ-BLACK-GAIN 1:3
Materials: Hard Steel
Booster Gain: 1 : 3
Joint Bolt: M20 x1.5 ; M12 x1.75
Net Weight 1.6 Kgs
What's ultrasonic booster?

Ultrasonic booster, the important component of the ultrasonic vibration system is to amplify the mass displacement or velocity of the mechanical vibration and concentrate the ultrasonic energy on a small area. Ultrasonic booster is an important part of the ultrasonic vibration system. Its main function in the vibration system is to amplify the mass displacement or velocity of the mechanical vibration, and concentrate the ultrasonic energy on a small area, that is, the energy is collected. Also known as ultrasonic shift levers or ultrasonic concentrators.

Ultrasonic booster, as the name suggests, are functional components that match the amplitude of ultrasonic vibrations with ultrasonic transducers. Its main function is to change the amplitude of the transducer (generally increase), improve the vibration ratio, improve the efficiency, improve the mechanical quality factor, enhance the heat resistance, expand the temperature range, and prolong the service life of the transducer. The ultrasonic transducer adjusts the load matching between the transducer and the ultrasonic horn by installing a booster, which reduces the resonance impedance and makes it work at the resonant frequency to improve the electro-acoustic conversion efficiency. Reduces the heat generation of the ultrasonic transducer and improves the service life.

Friendly Reminder

* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.

* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.

* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.

for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.

Additional information

Weight 1.6 kg
Dimensions 20 × 8 × 8 cm
Delivery Time

7 days after receiving payment

Packing Style

Carton Box + Plywood Crate (Sea Transportation)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
