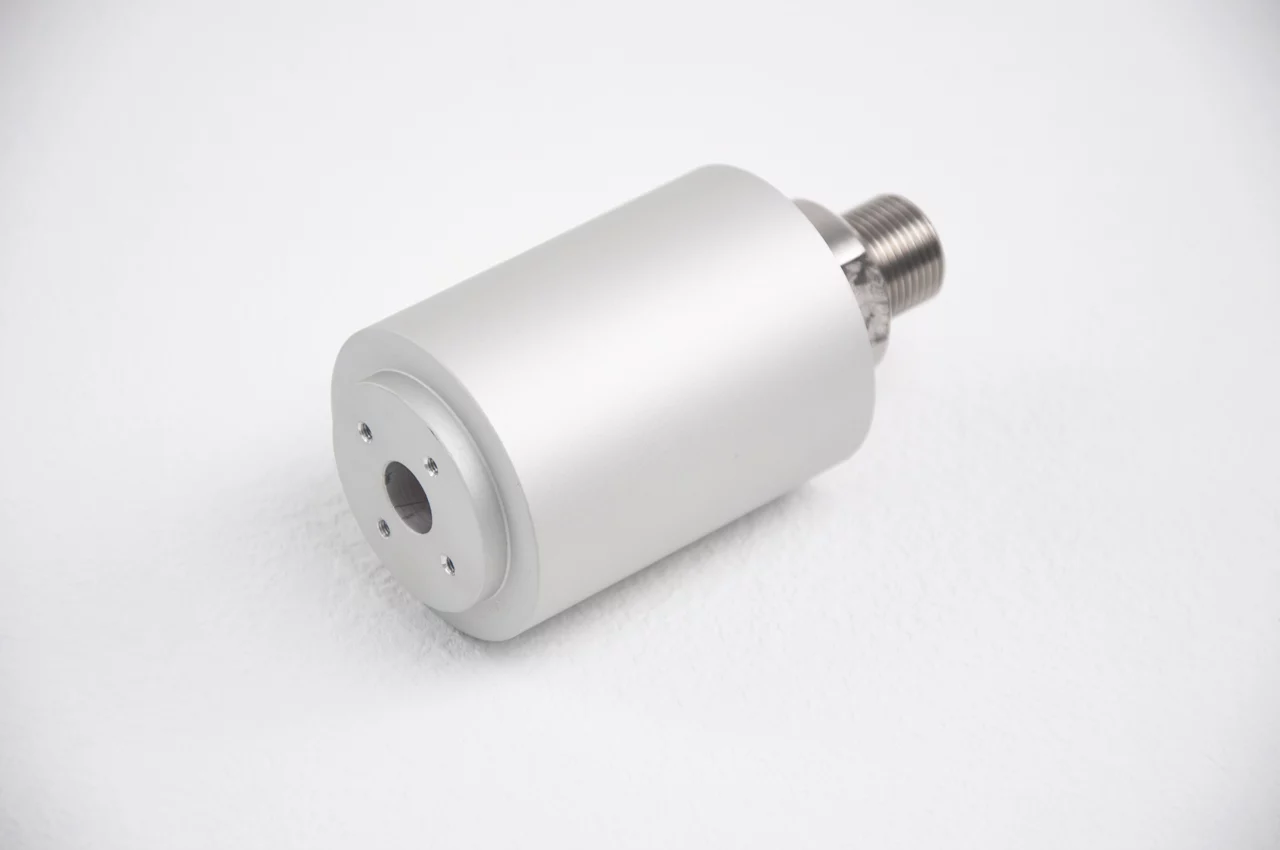

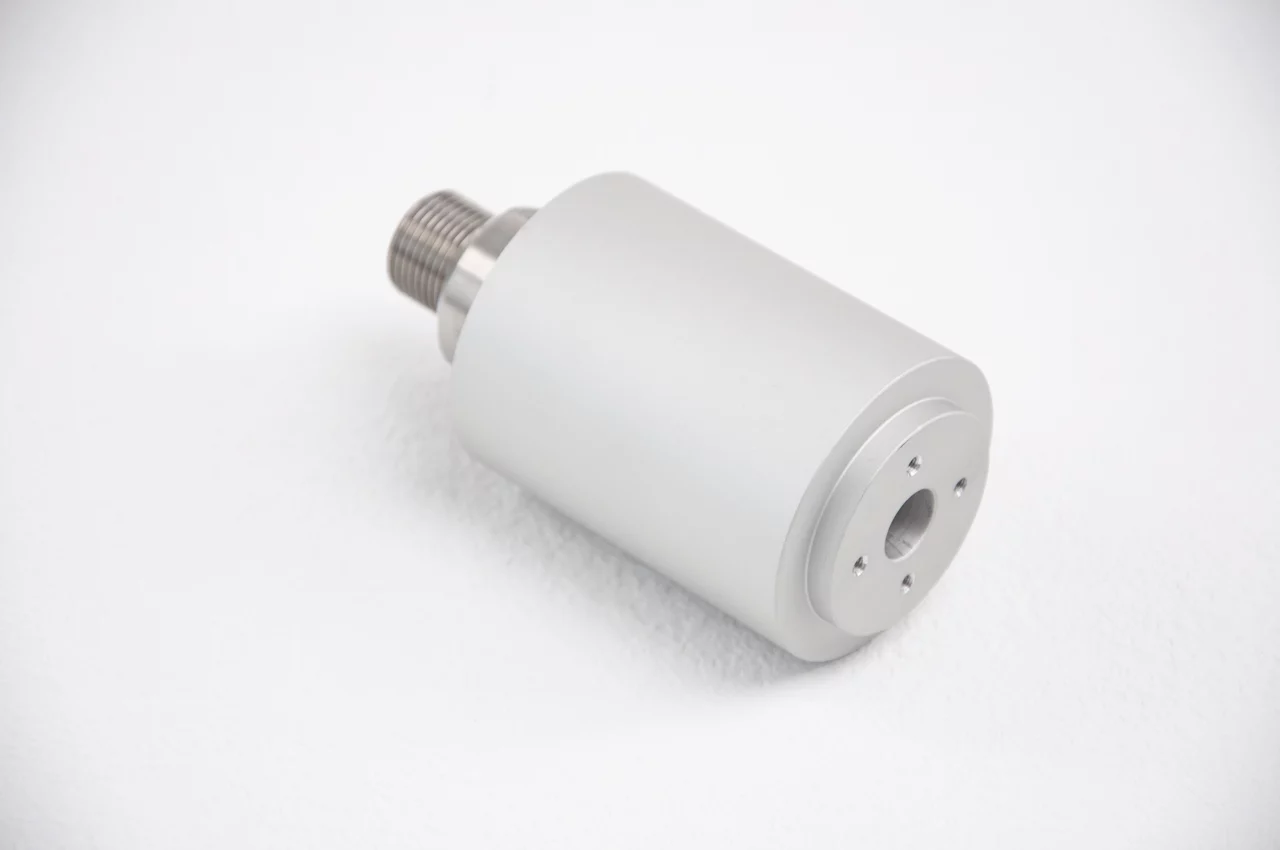

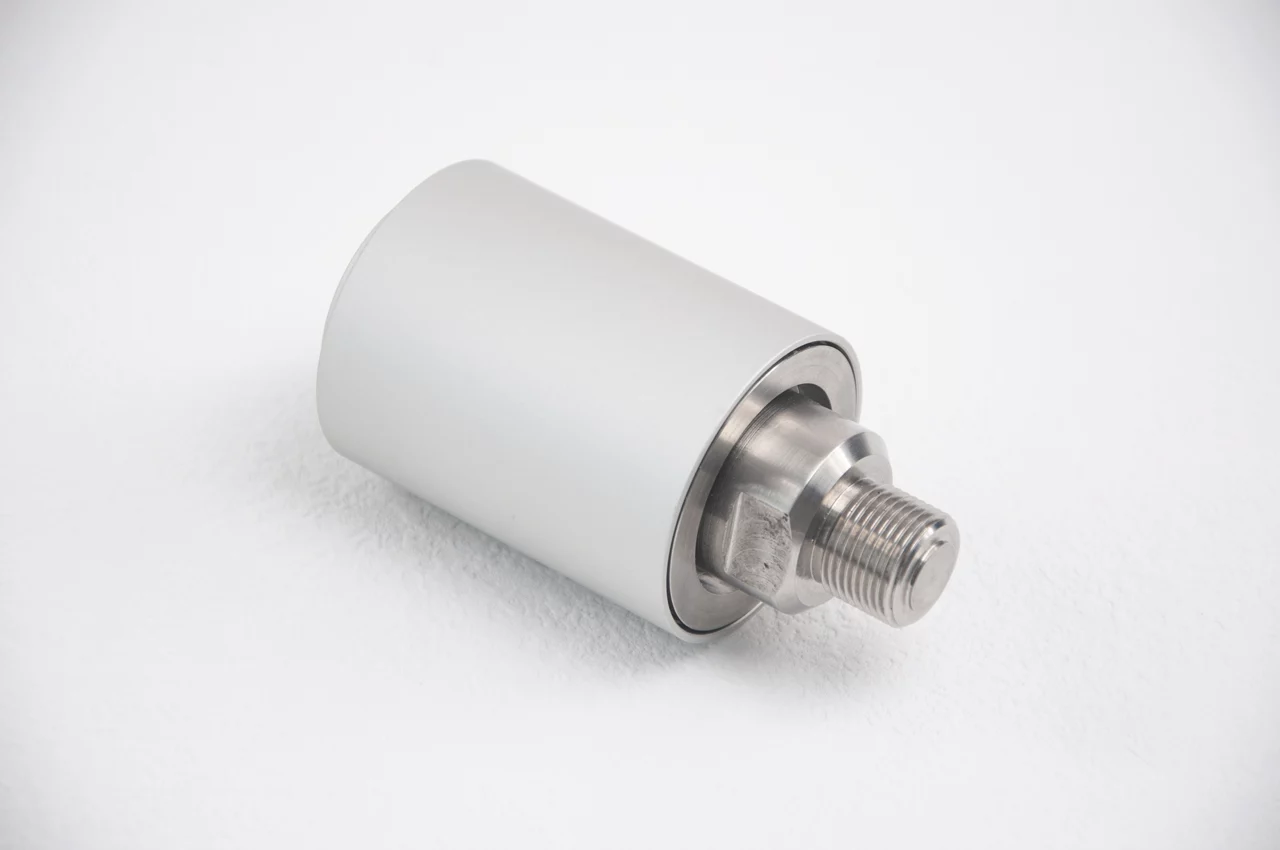

35kHz 1200watt Vibrating-Screen Transducer

$300.00

14% Off

  • 35kHz 1200watt Vibrating-Screen Transducer
  • This is for Vibrating-Screen (Built in Type)
  • Φ35mm P8 Ceramic Ring x 2 pcs
  • more capacitance 4400pF
  • low Impedance 6.0Ω
  • Wide Bandwidth: 36kHz ~ 38kHz
Categories: Tags: SKU: 35kHz 1200watt Vibrating-Screen Transducer

Description

Technical Details

Electrical Specification Data Result
Transducer Model No.: 36kHz 1200watt Vibrating-Screen Transducer (Built in Type)
Resonant Frequency 36 kHz (working 36k – 38k)
Aluminum Housing Φ 55 mm Diameter x 70 mm long
Total Length 106 mm
Piezoceramic Ring Φ35 mm x 2 pcs
Capacitance (C±10%pF) 4400 pF
Impedance (Ω) Transducer : 6 Ω
Amplitude (μmp-p) Transducer : 7 μmp-p
Joint Bolt /Gain size M12   default M12
Net Weight (gram) 435 gram
Remarks: Available optional accessaries:
Ultrasonic Generator (CE)
Aluminum Booster
Titanium Horn /Sonotrode
Horn Materials: 40CrNimoA or Titanium Alloy
Friendly Reminder

* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.

* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.

* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.

for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.

Additional information

Weight 0.5 kg
Dimensions 7 × 5 × 5 cm
Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
