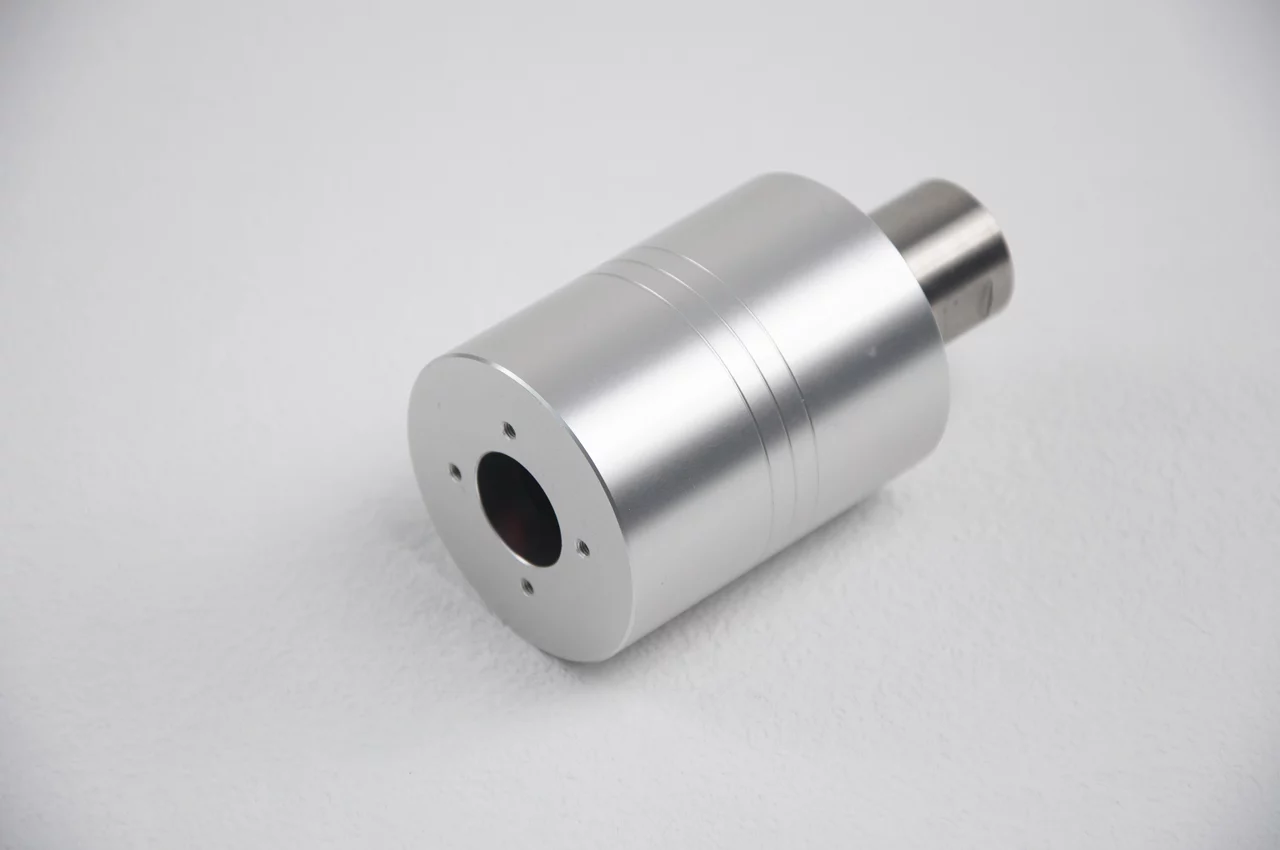

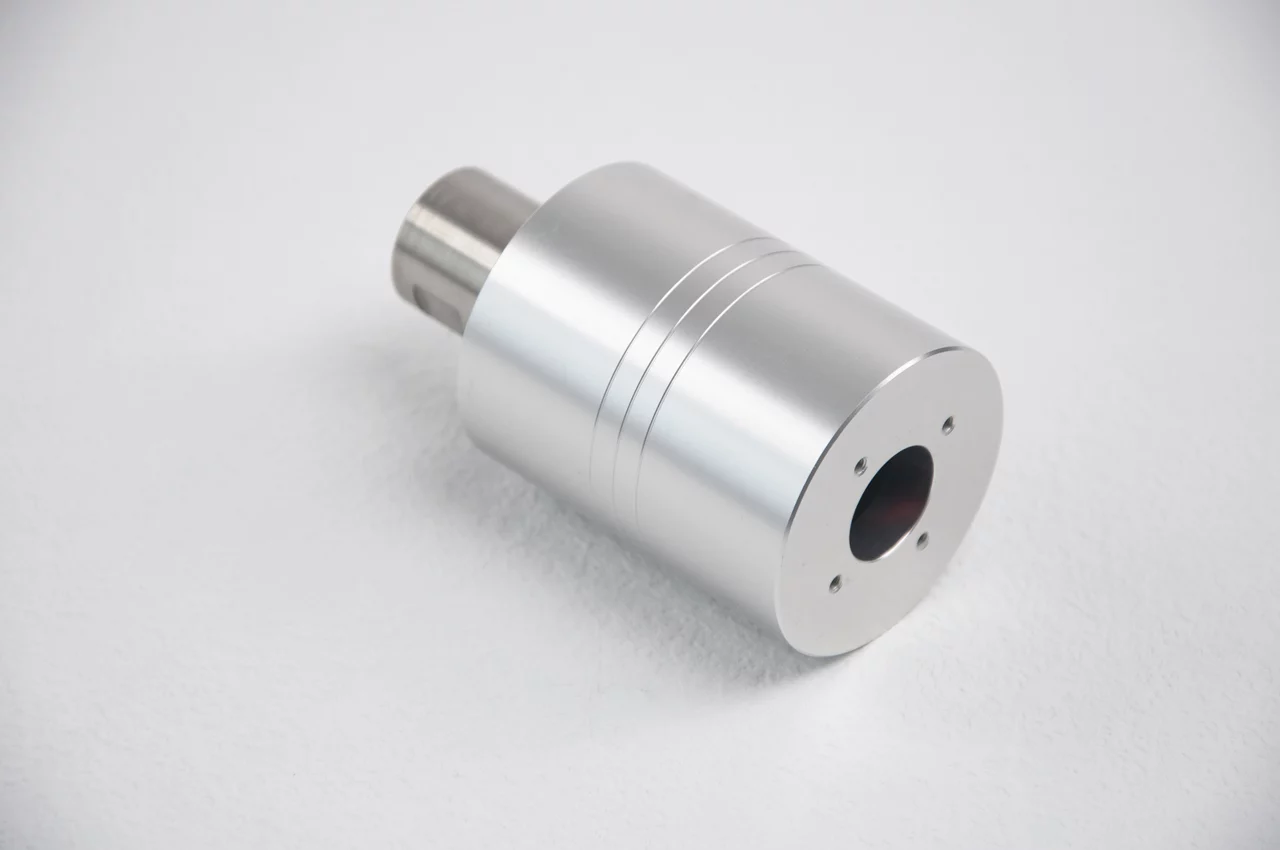

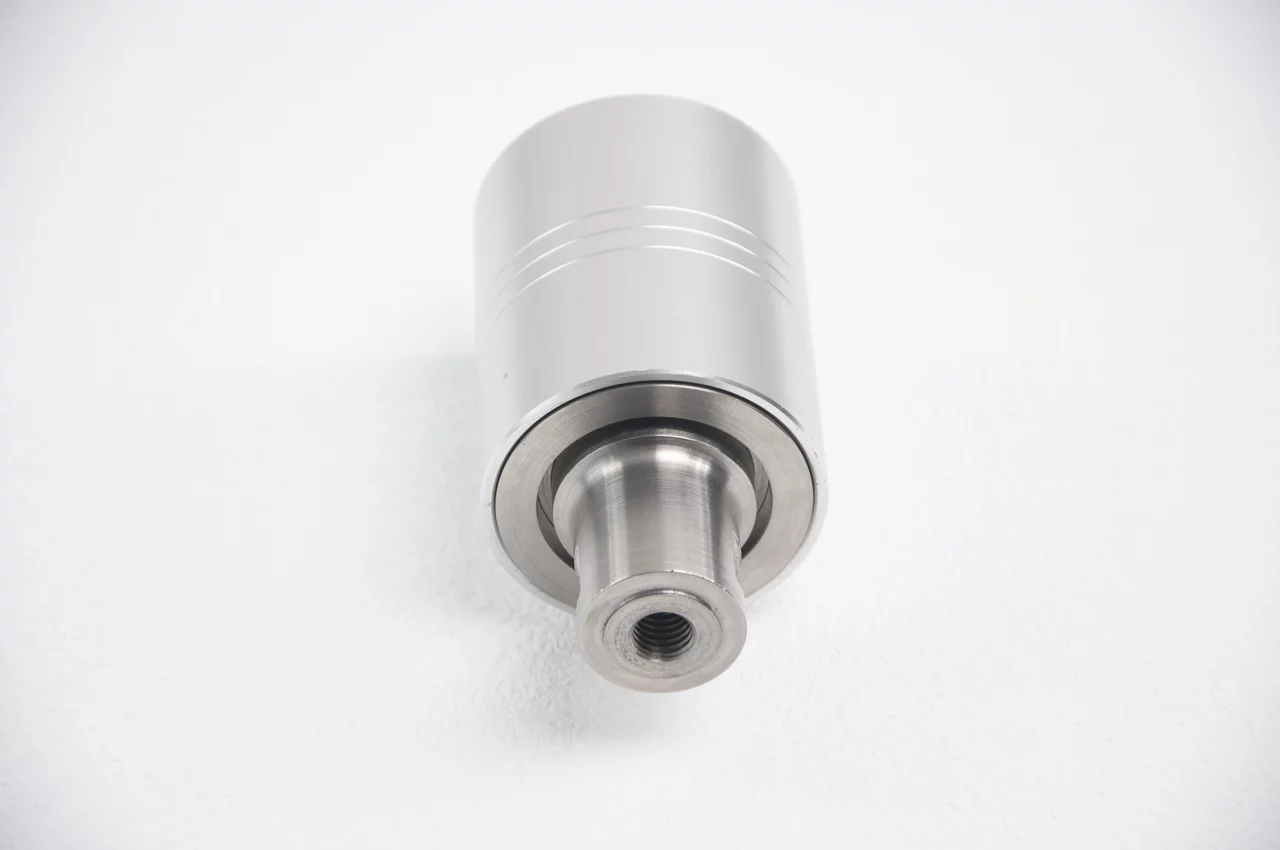

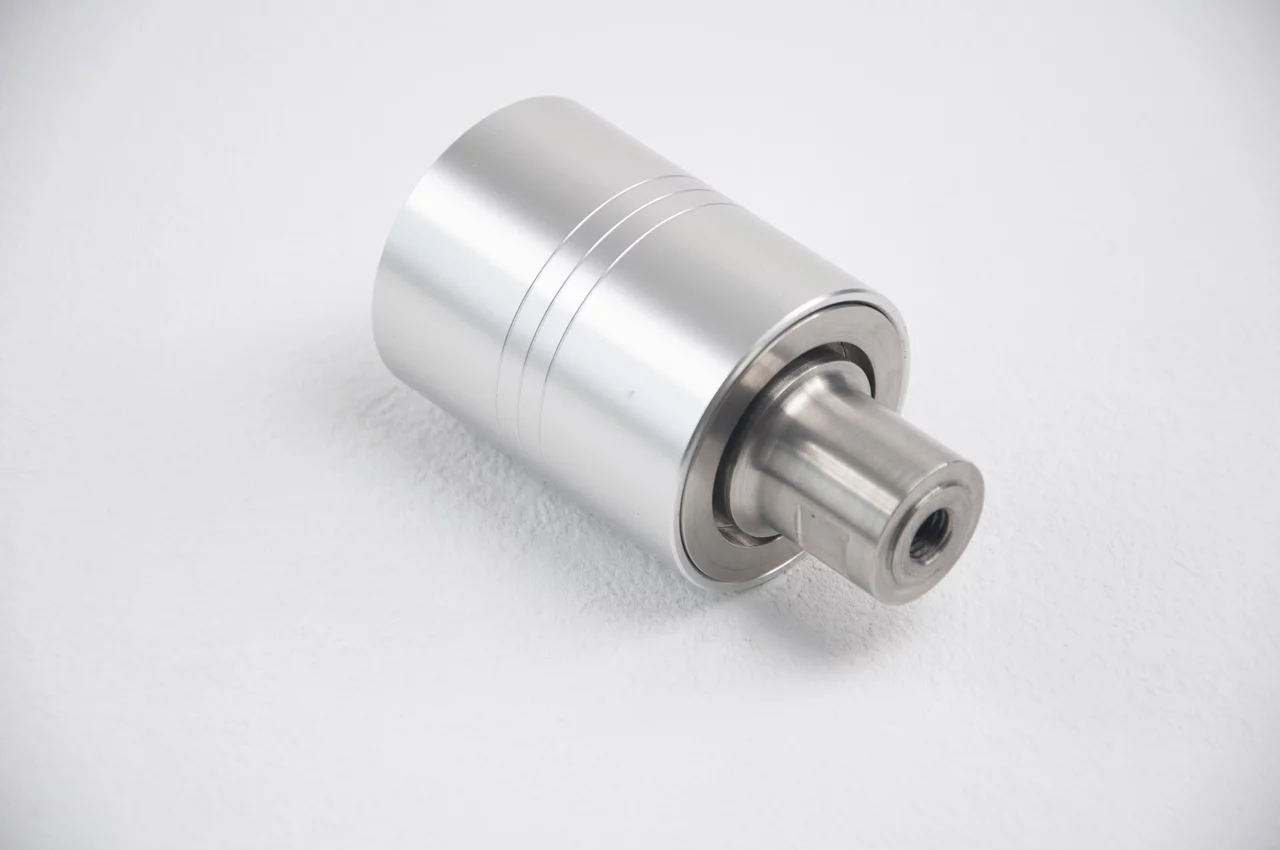

35kHz 1200watt Vibrating-Screen Transducer
Original price was: $350.00.$300.00Current price is: $300.00.
14% Off
- 35kHz 1200watt Vibrating-Screen Transducer
- This is for Vibrating-Screen (External)
- Φ35mm P8 Ceramic Ring x 2 pcs
- more capacitance 4400pF
- low Impedance 6.0Ω
- Wide Bandwidth: 36kHz ~ 38kHz
Description
Technical Details
Electrical Specification | Data Result |
---|---|
Transducer Model No.: | 36kHz 1200watt Vibrating-Screen Transducer (External Type) |
Resonant Frequency | 36 kHz (working 36k – 38k) |
Aluminum Housing | Φ 55 mm Diameter x 100 mm long |
Total Length | 100 mm |

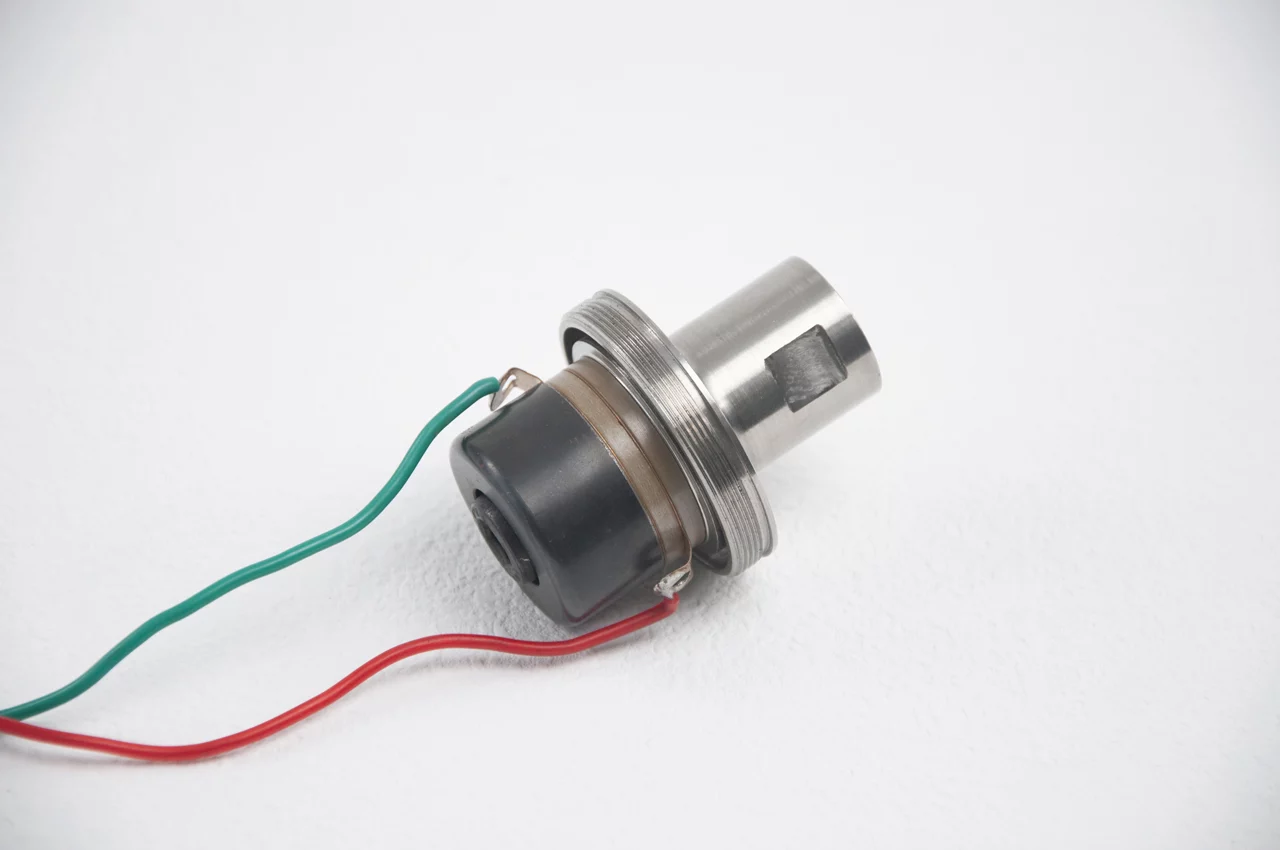

Piezoceramic Ring | Φ35 mm x 2 pcs |
Capacitance (C±10%pF) | 4400 pF |
Impedance (Ω) | Transducer : 6 Ω |
Amplitude (μmp-p) | Transducer : 7 μmp-p |
Joint Bolt /Gain size | M8 default M8 |
Net Weight (gram) | 446 gram |
Remarks: | Available optional accessaries: Ultrasonic Generator (CE) Aluminum Booster Titanium Horn /Sonotrode Horn Materials: 40CrNimoA or Titanium Alloy |
* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.
* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.
* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.
for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.
Additional information
Weight | 0.5 kg |
---|---|
Dimensions | 7 × 5 × 5 cm |
Delivery Time | 7 days after receiving payment |
Packing Style | Inside Foam + Carton (Fedex /DHL Delivery) |
Payment Term | Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500 |
