SONOBIO Split-type Ultrasonic Homogenizer

$1,699.00$2,199.00

6% Off

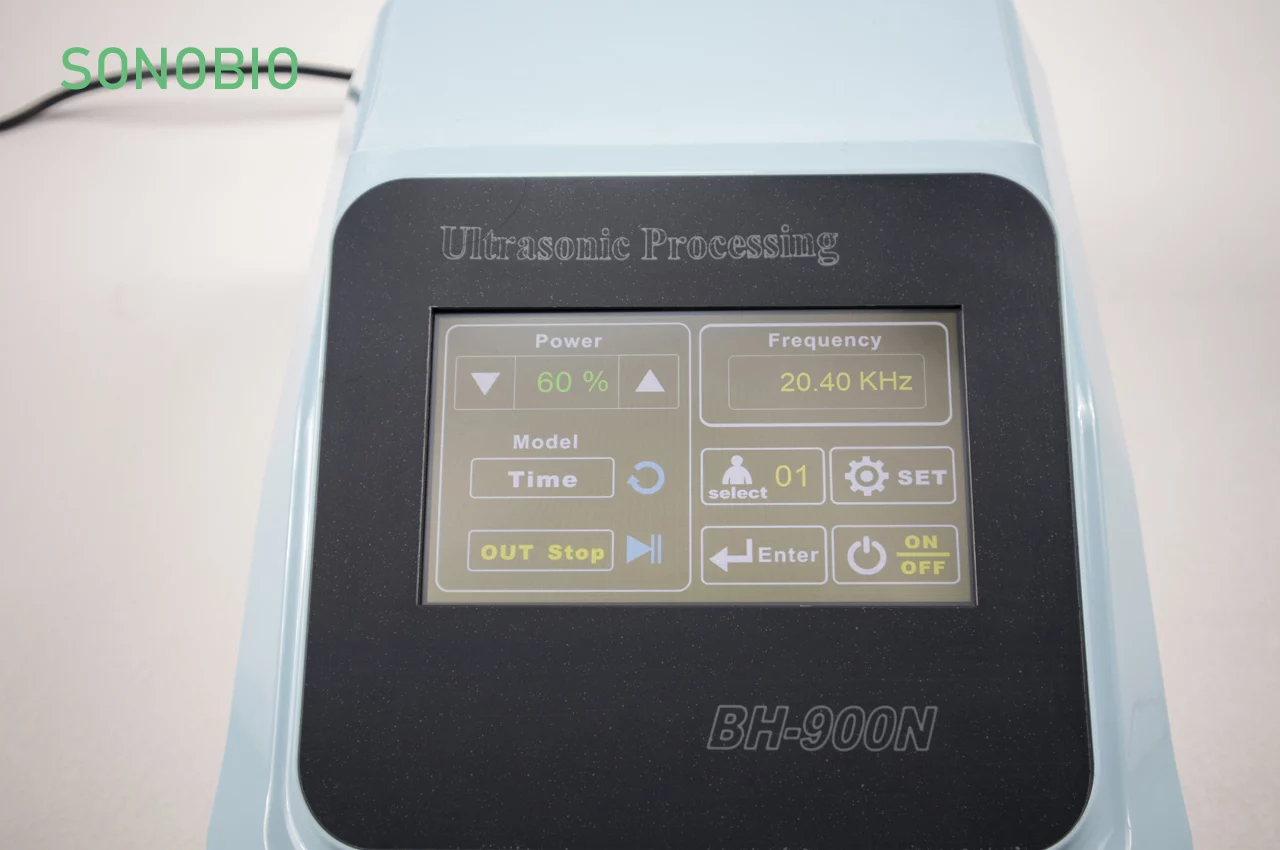

【Easy-to-use】 7” Colored Touch Screen, 3 working mode, Programmable operation. Easy-to-use interface allows in-process monitoring of key variables, including time, power, energy, temperature and experiment progress.
【Automation】Self-Designed 19 ~ 26kHz auto sweep PCB circuit, auto-tracing frequency & power control, auto-running, auto-protection.
【Long-life Titanium Probe】High-purity titanium alloy amplitude rod, working maximum at 1112°F high temperature, acid and alkali resistance.
【Wide Application Range】Sample preparation, cell disruption, nanoparticle dispersion, mixing, homogenization, DNA, cell lysis, protein extraction.
【TWO YEAR Warranty】Quality Guaranteed

Categories: SKU: N/A

Description

SONOBIO Ultrasonic Homogenizer

Sino Sonics (SONOBIO) specializes in ultrasonic technology and ultrasonic homogenizers, which are used for homogenizing, deagglomerating, emulsifying, suspending, accelerating chemical reactions and the disruption of cells, bacteria, fungi or spores.
In ultrasonic homogenisation, several components (liquid-liquid, liquid-solid) are finely mixed together. This method has established itself in the laboratory for decades in addition to the well-known and proven ultrasonic bath.

  • Advantage and Application:

1. Automatic Resonant Point and Power Control — Frequency sweeping from 19-22KHZ and no need to manually adjust the energy.
2. 1s-99 Hour Process Control Timer — Can control the total working time from 1 sec to 99 hours, real-time suspension of the current running task.Working hours can be displayed cumulatively.
3. On/off Pulse Timer — Ensure high strength treatment of temperature sensitive samples, open and close loop can be selected from 1 sec to 99 minutes.
4. Automatic Amplitude Compensation — Ensure that the amplitude of the probe is not changed in the ultrasonic process.
5. Easy to Operate — Menu operation, the instrument uses a large screen display, all the functions are displayed on the LCD screen.
6.Safe to Use — Sample overload / over temperature protection function, Frequency automatic tracking, automatic fault alarm.

Video Introduction

Technical Parameter

Details
SONOBIO-LAB-HOMOGENIZER
Power in AC 100 ~ 240V, 50 ~ 60 Hz Auto Adapt
Power Output 1200 Watt (Step Control 0-100%) (Can be 2000Watt with Ø25/30mm probe)
Frequency Range 20KHz (19 ~ 26Khz auto tacking frequency)
3 Working Mode Continuous
Paulse Loop (1 sec ~ 99 min)
Timer (1 sec ~ 99 hours)
Sample Processing Volume 0.5 ~ 5000 ml
Ultrasonic Probe Titanium alloy, long life design.
Sonicator Dimensions 250 x 360 x 220mm (LxWxH)
Open Door Dimensions Digital Type, 7.0 ” Touch Screen, Programmable
Packing Size 45cm x 40cm x50cm
Gross Weight 8.0 kg

Packing List

Package including:

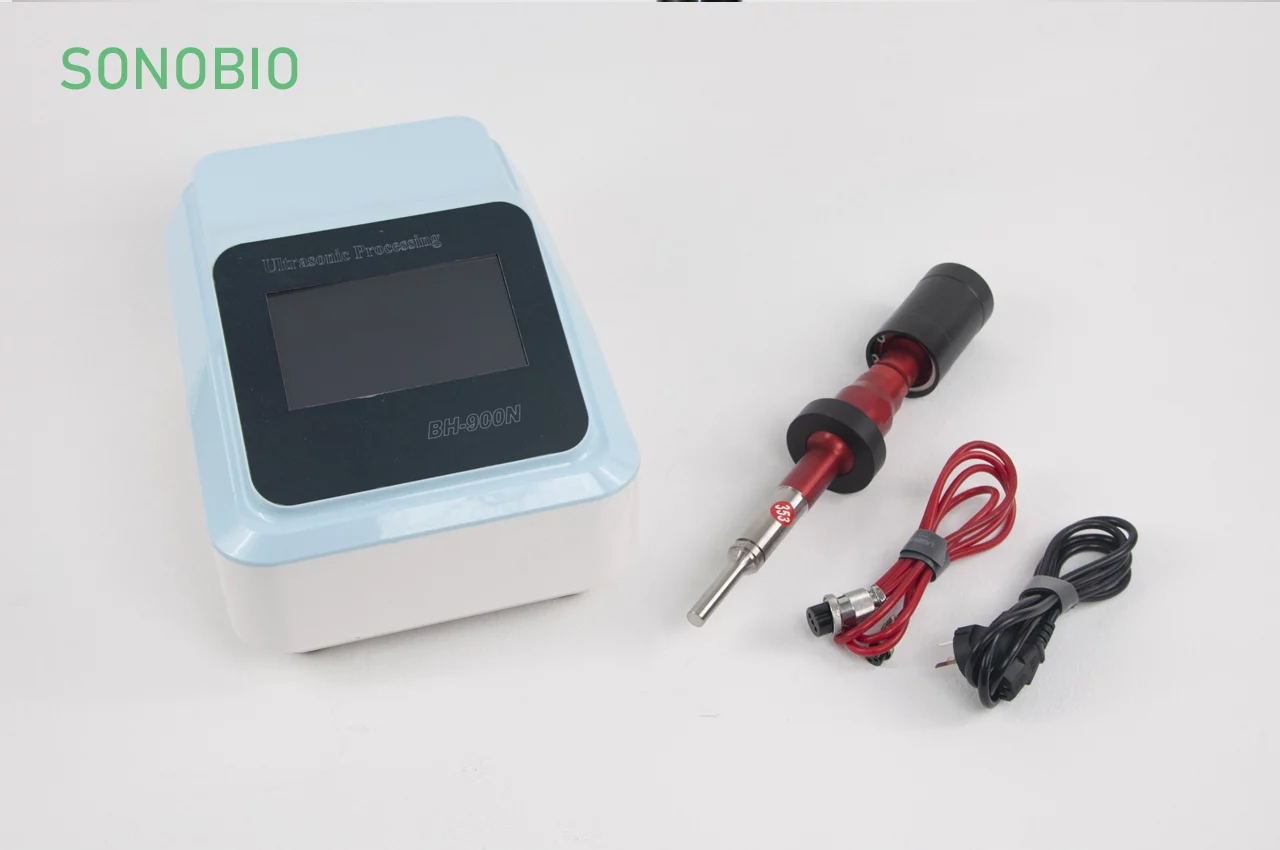

1 Set of Ultrasonic Generator
1 Pc of Ultrasonic Probe set
1 Pc of Power in cable
1 Pc of Connection cable to probe

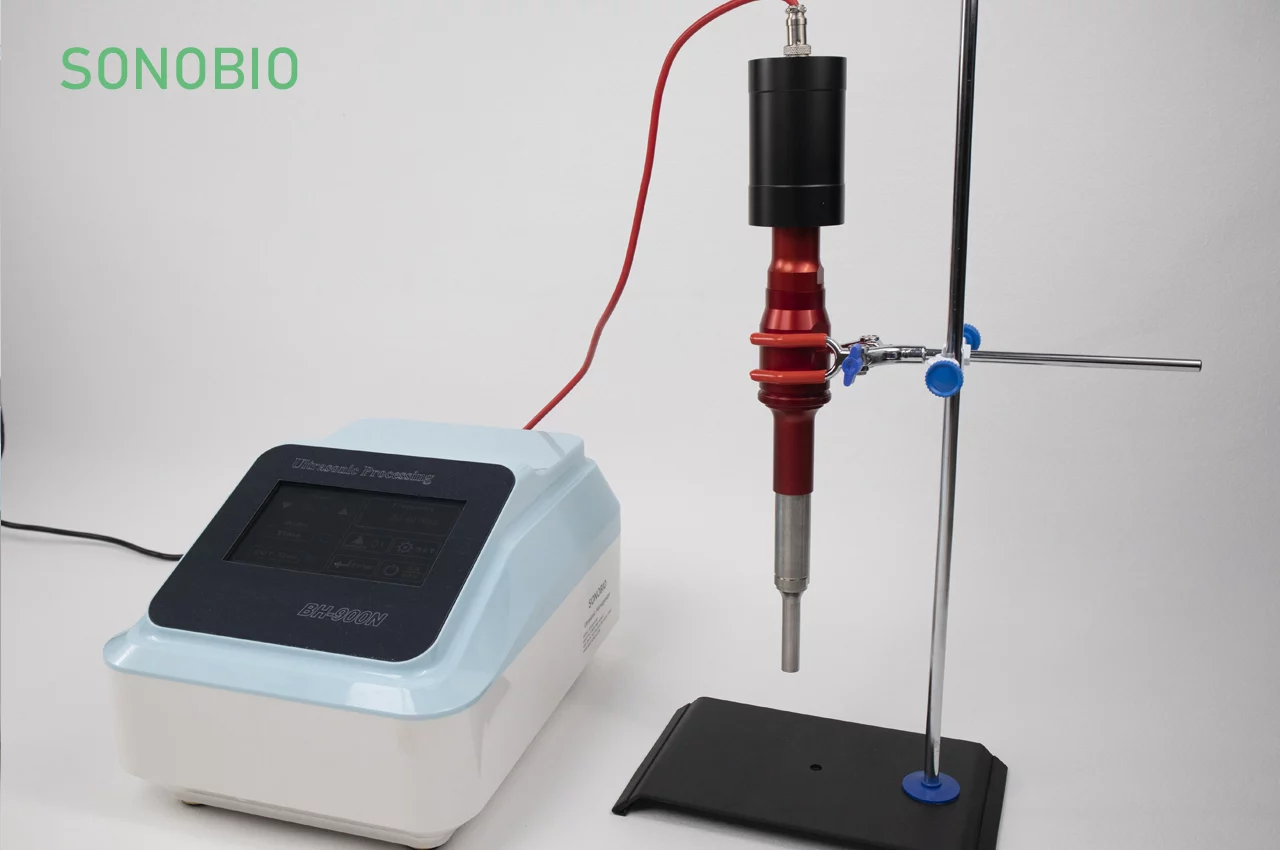

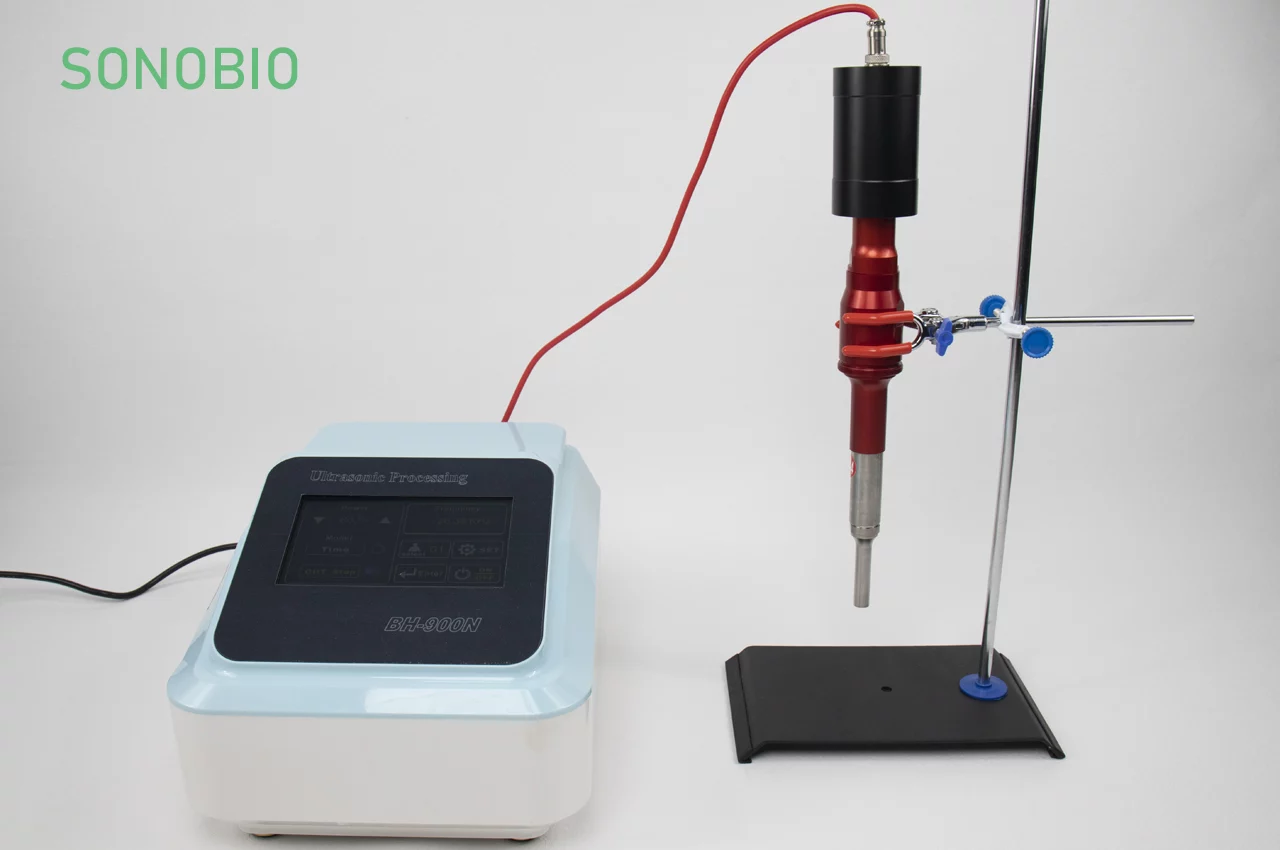

1 Pc of Support stand/holder
1 Set of Warrant card & user manual (English)
Packing Size 45cm x 40cm x50cm
Gross Weight 8.0 kg

Working Principle:

The ultrasonic electronic generator transforms AC line power to a 20 ~ 40KHz signal that drives a piezoelectric convertor/transducer. This electrical signal is converted by the transducer to a mechanical vibration due to the characteristics of the internal piezoelectric crystals. The vibration is amplified and transmitted down the length of the horn/probe where the tip longitudinally expands and contracts. The distance the tip travels is dependent on the amplitude selected by the user through the amplitude control knob. In liquid, the rapid vibration of the tip causes cavitation, the formation and violent collapse of microscopic bubbles. The collapse of thousands of cavitation bubbles, releases tremendous energy in the cavitation field. Objects and surfaces within the cavitation field are “processed”. The probe tip diameter dictates the amount of sample that can be effectively processed. Smaller tip diameters (Microtip probes) deliver high intensity sonication but the energy is focused within a small & concentrated area. (0.5ml to 30 ml) Larger tip diameters can process larger volumes, up to 5 liter vessel.

Working Application:

High shear forces created by ultrasonic cavitation/ vibration have the ability to break up particle agglomerates and result in smaller and more uniform particles sizes. The stable and homogenous suspensions produced by ultrasonics are widely used in many industries today. Probe sonication is highly effective for processing nanomaterials (carbon nanotubes, graphene, inks, metal oxides, etc.) and Sonicators have become the industry standard for:

Nanoparticle Dispersion; Composite material preparation
DNA and Chromatin Shearing;
Cell lysis, tissue disruption; Cell Lysis-breaking extraction and smashing
Cannabis extracts (CBD, THC); Herbal Medicine and phytoextraction
Protein Purification
Homogenizing /Extraction of Soil Organic Matter
Sonication is effective for many other applications including:
Degassing / Liposomes / Crystallization / Emulsification / Extraction

Additional information

Weight 7.0 kg
Dimensions 300 × 270 × 450 cm
Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500

Probe Size

Ø10mm Probe (10ml~500ml), Ø13mm Probe (10ml~1 Liter), Ø20mm Probe (50ml~2 Liter), Ø30mm Probe (50ml~5 Liter), Ø3mm Probe (0.3ml~100ml), Ø6mm Probe (0.3ml~200ml)

Warranty Period

1 Year Warranty, Free Replacement
