SONOBIO Integrated Ultrasonic Homogenizer


6% Off

(1 customer review)

【Easy-to-use】 3.2” Colored Touch Screen, 3 working mode, Programmable operation. Easy-to-use interface allows in-process monitoring of key variables, including time, power, energy, temperature and experiment progress.
【True temperature control】Temperature sensor integrated, monitor temperature during working, auto shutdown when reach given temperature.
【Low Noise】Working Noise Soundproof Box integrated

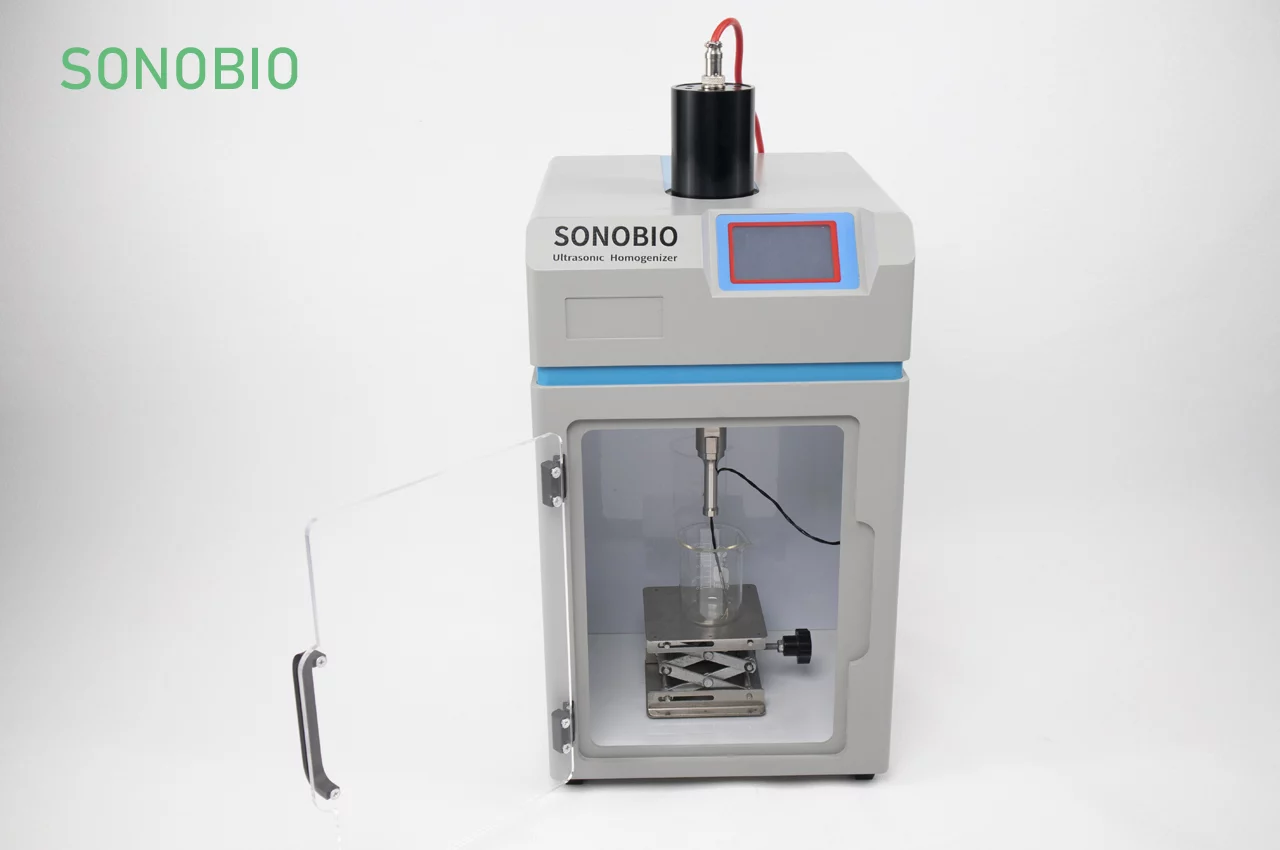

【Realtime Observation】Monitor working status through glass window
【Wide Application Range】Sample preparation, cell disruption, nanoparticle dispersion, mixing, homogenization, DNA, cell lysis, protein extraction.

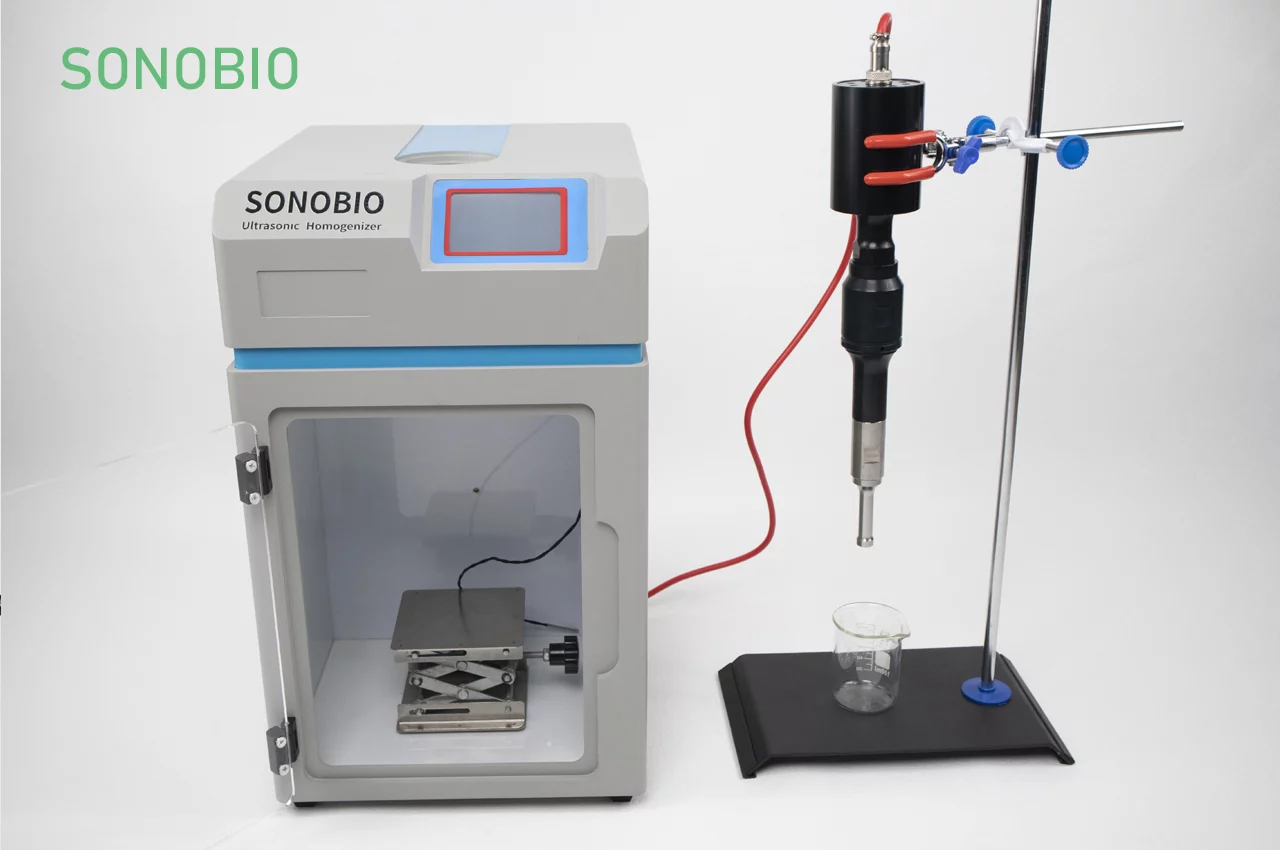

【Dual Function】Homogenizing in soundproof box, or outside the box.

Categories: SKU: N/A


SONOBIO Integrated Ultrasonic Homogenizer

Sino Sonics (SONOBIO) specializes in ultrasonic technology and ultrasonic homogenizers, which are used for homogenizing, deagglomerating, emulsifying, suspending, accelerating chemical reactions and the disruption of cells, bacteria, fungi or spores.
In ultrasonic homogenisation, several components (liquid-liquid, liquid-solid) are finely mixed together. This method has established itself in the laboratory for decades in addition to the well-known and proven ultrasonic bath.

  • Advantage and Application:

【Integrated Ultrasonic Cell Crusher】 2 in 1 (Machine + Soundproof Box all together). More convenience and Small in Size(15lb (6.8KG); 18.5×12.6×20.6in (470×320×525mm) and much lower ultrasonic noise than FS-N, FS-T series; Complete the whole experiment process by using this small machine.
【Unique Design Probe】 Made by Titanium Alloy, unique design allows the ultrasonic waves emits from the sides. Increase the contact area with the sample, so the sample is processing more thoroughly. Acid resistance and wear resistance. Lifespan is 6 times longer than ordinary probes. Probe optional (mm) Φ1.5, Φ2, Φ3 , Φ6, Φ8, Φ10, Φ13, Φ16, Φ18, Φ20, Φ25, Φ30 (See the left chart for more information. Recommended to choose standard horn because it has HALF YEAR Warranty. 1.5mm and 2mm not included

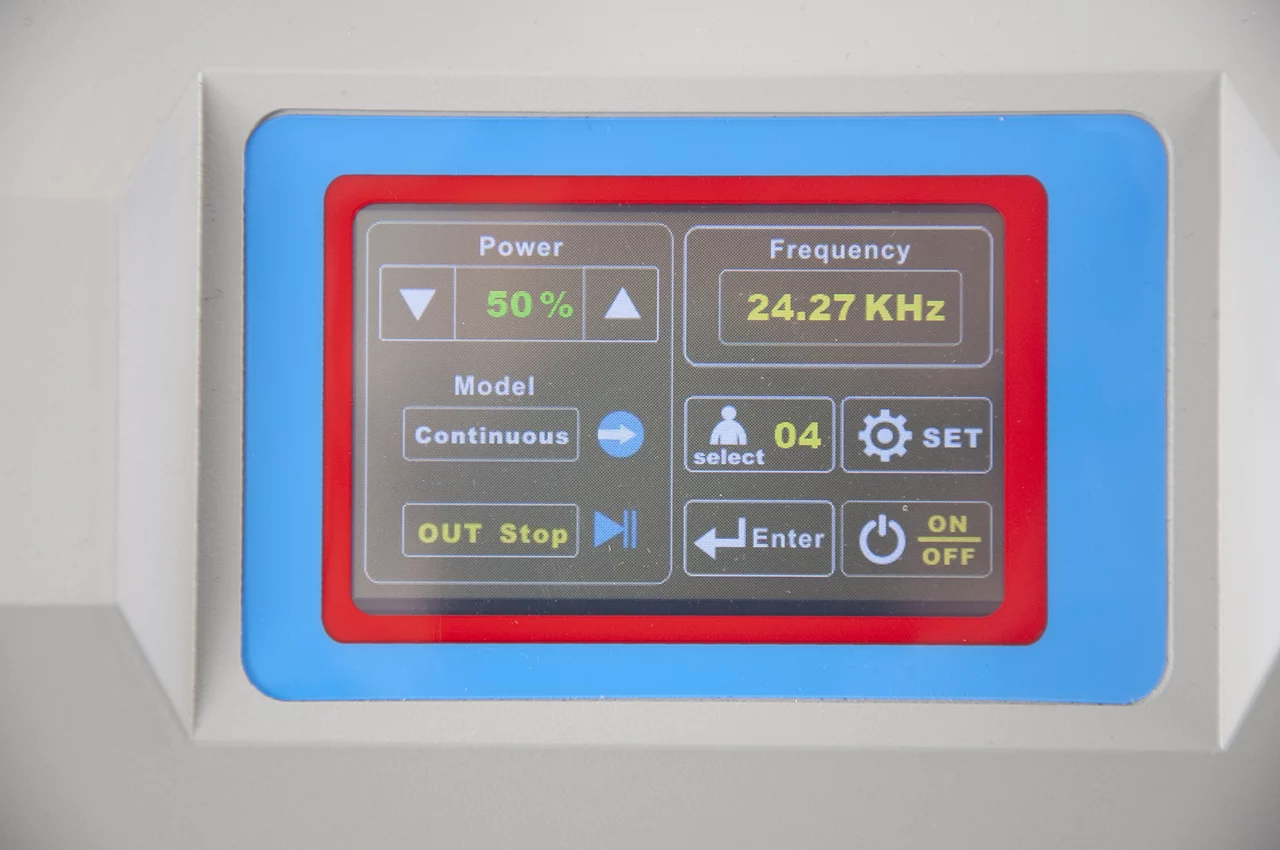

【Very Easy Operation】 3.2” Color LCD Touch Screen, Data Storage Function, store about 10 Set of Data Individually. Automatic resonance point and power control, 99h time control, pause at any time you like. Temperature sensor can detect sample temperature in real time 32-572℉(Overheat Protection). Display the frequency; Power setting: 1% increment, more precise control, each parameter has an independent setting interface.
【Observe During Processing】 Small bulb inside the box allows to observe the status of the sample during processing. Frequency: 24KHz (19-26KHzAutomatic Frequency Scanning and Checking). Faster than the old models (FS-N, FS-T series)20KHZ and slower horn worn-out.
1. Extraction of cell contents, bacteria, viral tissue.
2. Dispersion and homogenization of the material particles. For example, nanomaterial dispersion (silicon dioxide, carbon nanotubes, graphene, etc.)
3. Accelerate the dissolution and accelerate the chemical reaction. For example for chemical synthesis.
【TWO YEAR Warranty】We provide TWO YEAR Warranty for the machine and HALF YEAR Warranty for the standard horn.

Video Introduction

Technical Parameter

Power in AC 100 ~ 240V, 50 ~ 60 Hz Auto Adapt
Power Output 800 Watt (Step Control 0-100%)
Frequency Range 25KHz (19 ~ 26Khz auto tacking frequency)
3 Working Mode Continuous
Paulse Loop (1 sec ~ 99 min)
Timer (1 sec ~ 99 hours)
Sample Processing Volume 0.5 ~ 3000 ml
Ultrasonic Probe Titanium alloy, long life design.
Sonicator Dimensions 270x300x450mm (LxWxH)
Open Door Dimensions 260x190mm
Packing Size 45cm x 40cm x50cm
Gross Weight 8.0 kg

Packing List

Package including:
1 Set of Integrated Ultrasonic Homogenizer/Sonicator
1 Pc of Ultrasonic Probe set
1 Pc of Power in cable
1 Pc of Connection cable to probe
1 Pc of Support stand/holder
1 Set of Warrant card & user manual (English)
Packing Size 45cm x 40cm x50cm
Gross Weight 8.0 kg

Working Principle:

The ultrasonic electronic generator transforms AC line power to a 20 ~ 40KHz signal that drives a piezoelectric convertor/transducer. This electrical signal is converted by the transducer to a mechanical vibration due to the characteristics of the internal piezoelectric crystals. The vibration is amplified and transmitted down the length of the horn/probe where the tip longitudinally expands and contracts. The distance the tip travels is dependent on the amplitude selected by the user through the amplitude control knob. In liquid, the rapid vibration of the tip causes cavitation, the formation and violent collapse of microscopic bubbles. The collapse of thousands of cavitation bubbles, releases tremendous energy in the cavitation field. Objects and surfaces within the cavitation field are “processed”. The probe tip diameter dictates the amount of sample that can be effectively processed. Smaller tip diameters (Microtip probes) deliver high intensity sonication but the energy is focused within a small & concentrated area. (0.5ml to 30 ml) Larger tip diameters can process larger volumes, up to 5 liter vessel.

Working Application:

High shear forces created by ultrasonic cavitation/ vibration have the ability to break up particle agglomerates and result in smaller and more uniform particles sizes. The stable and homogenous suspensions produced by ultrasonics are widely used in many industries today. Probe sonication is highly effective for processing nanomaterials (carbon nanotubes, graphene, inks, metal oxides, etc.) and Sonicators have become the industry standard for:

Nanoparticle Dispersion; Composite material preparation
DNA and Chromatin Shearing;
Cell lysis, tissue disruption; Cell Lysis-breaking extraction and smashing
Cannabis extracts (CBD, THC); Herbal Medicine and phytoextraction
Protein Purification
Homogenizing /Extraction of Soil Organic Matter
Sonication is effective for many other applications including:
Degassing / Liposomes / Crystallization / Emulsification / Extraction

Additional information

Weight 7.0 kg
Dimensions 300 × 270 × 450 cm
Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500

Probe Size

Ø10mm Probe (10ml~500ml), Ø13mm Probe (10ml~1 Liter), Ø20mm Probe (50ml~2 Liter), Ø3mm Probe (0.3ml~100ml), Ø6mm Probe (0.3ml~200ml)

Warranty Period

1 Year Warranty, Free Replacement
