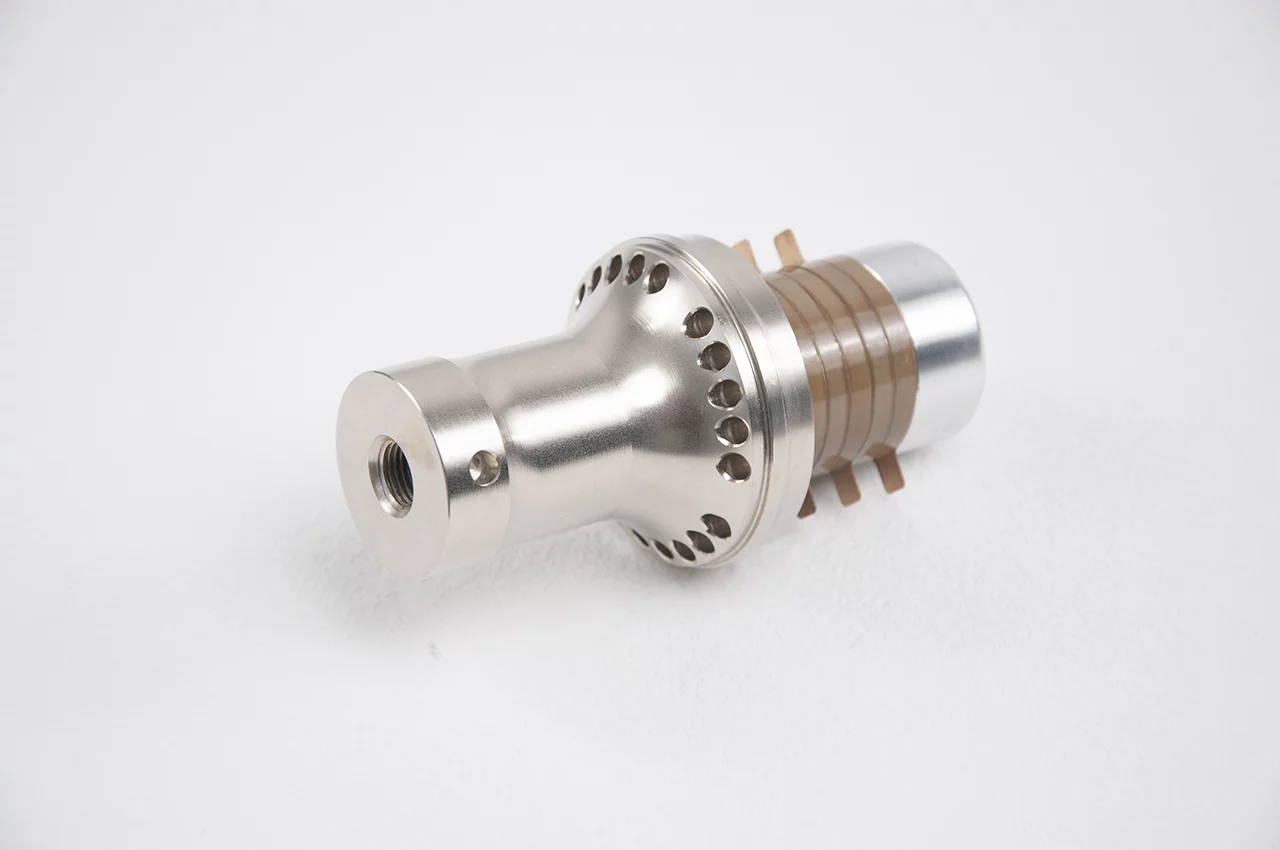

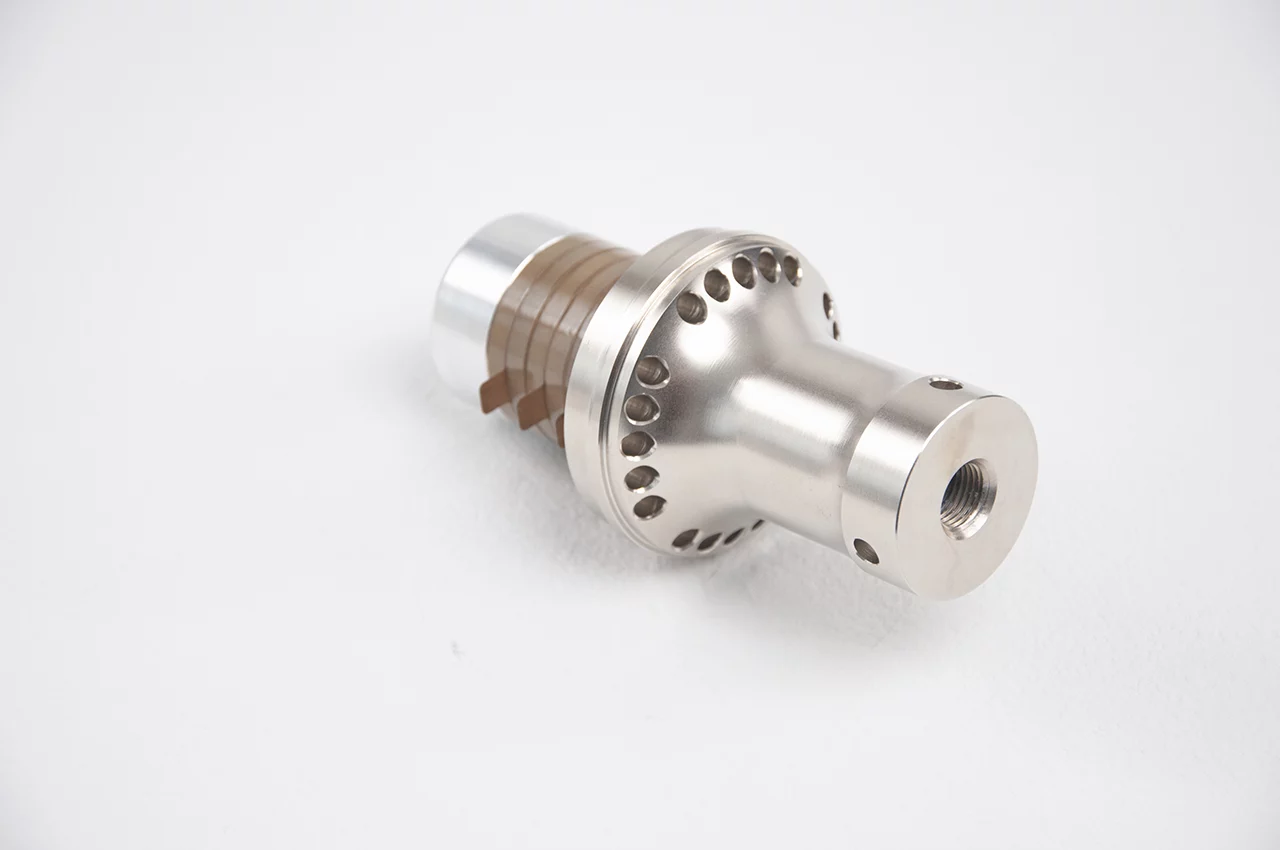

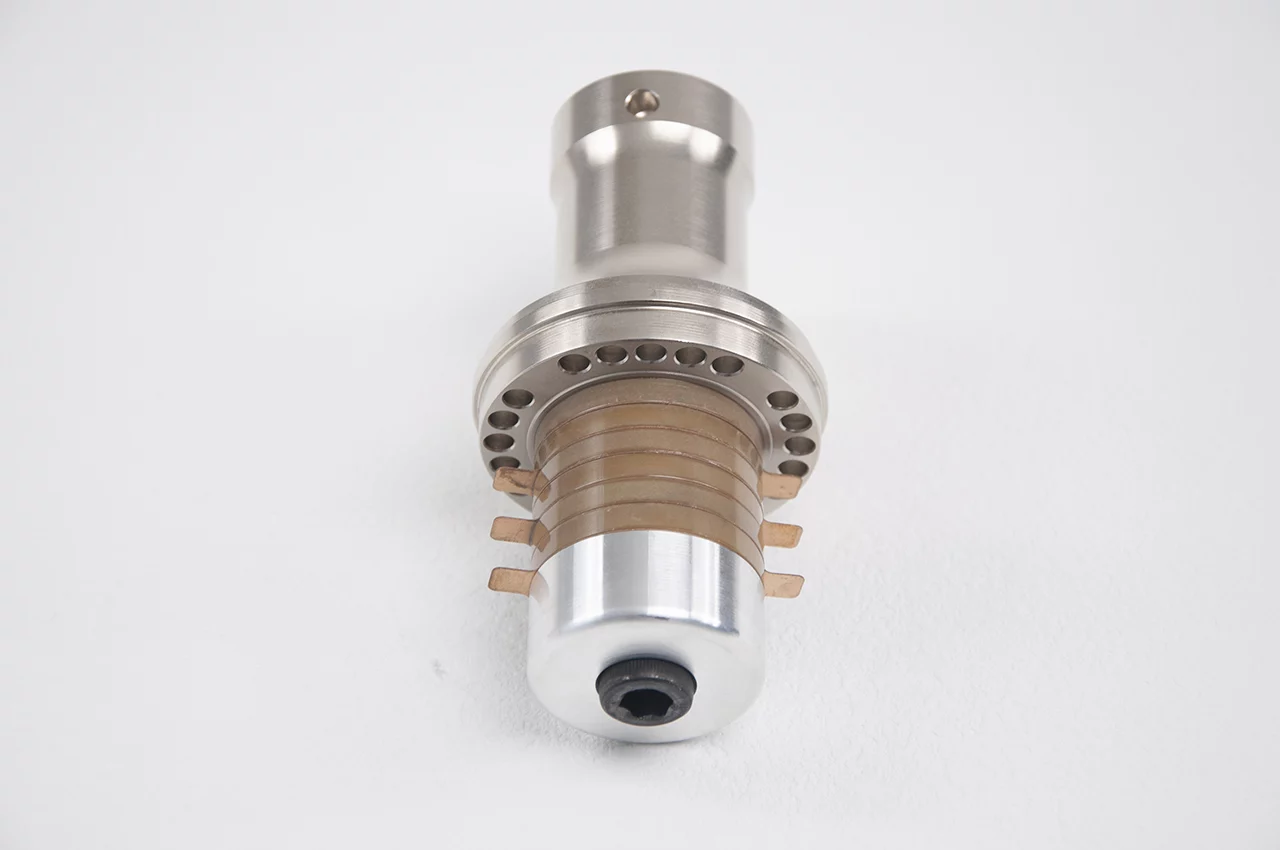

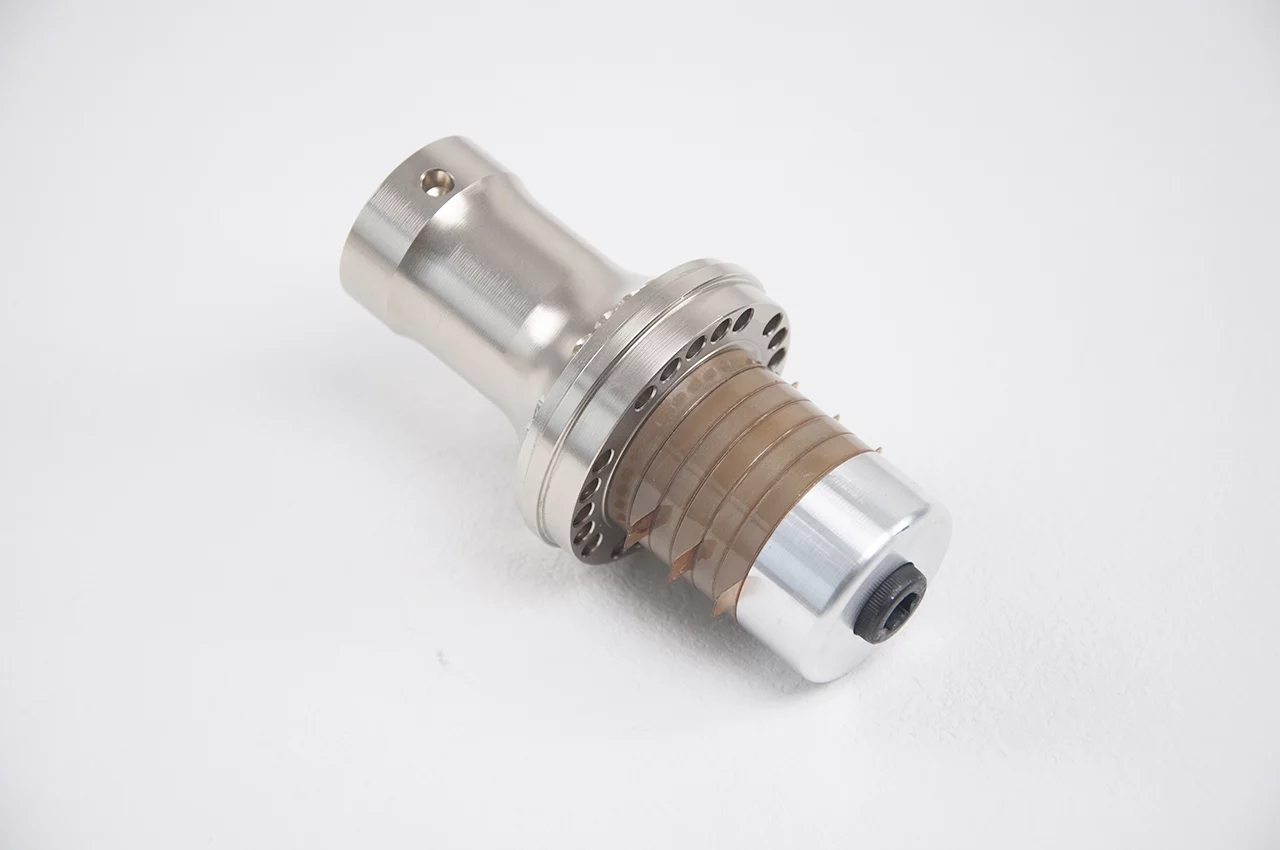

20kHz 2000Watt Branson 803 /8700 Replacement
- Fully compatible with Branson® 800 Series 20 kHz 8700 1500 watt welders
- Poreless, high-density, military-grade piezoceramics
- Excellent electro-acoustic conversion efficiency
- Minimal thermal dissipation and power losses
- Large range of working temperature &low resonance impedance and heat productivity
- Easy to installation & High reliablity
- For bulk order price please contact our sales expert.
|Electrical Specification||Data Result|
|Transducer Model No.:||20kHz 2000Watt Branson 803 /8700 Replacement|
|Frequency (Fs ± 0.5kHz)||20 kHz|
|Transducer’s Maximal Diameter:
Maximum Height /Length:
|Flange Size:||Φ60 mm|
|Piezoceramic Ring Diameter (mm)||Φ40 mm|
|Piezoceramic Ring Quantity (pc)||6 Pcs|
|Impedance (Ω)||Transducer : 4 Ω|
|Capacitance (C±10%pF)||12550 pF (P8 )|
|Input Power (Watt) Max||Rated Power: 2000Watt|
|Amplitude (μmp-p)||Transducer : 12 μmp-p|
|Front Mass Metal||Cemented Carbide|
|Back Mass Metal||Aluminum Alloy|
|Joint Bolt /Gain size||1/2″ , 20|
|Net Weight (gram)||641 gram|
|Total Height /Length (mm)||125 mm|
Available optional accessaries:
Ultrasonic Generator (CE)
* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.
* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.
* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.
for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.
|Dimensions||13 × 6 × 6 cm|
7 days after receiving payment
Inside Foam + Carton (Fedex /DHL Delivery)
Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
