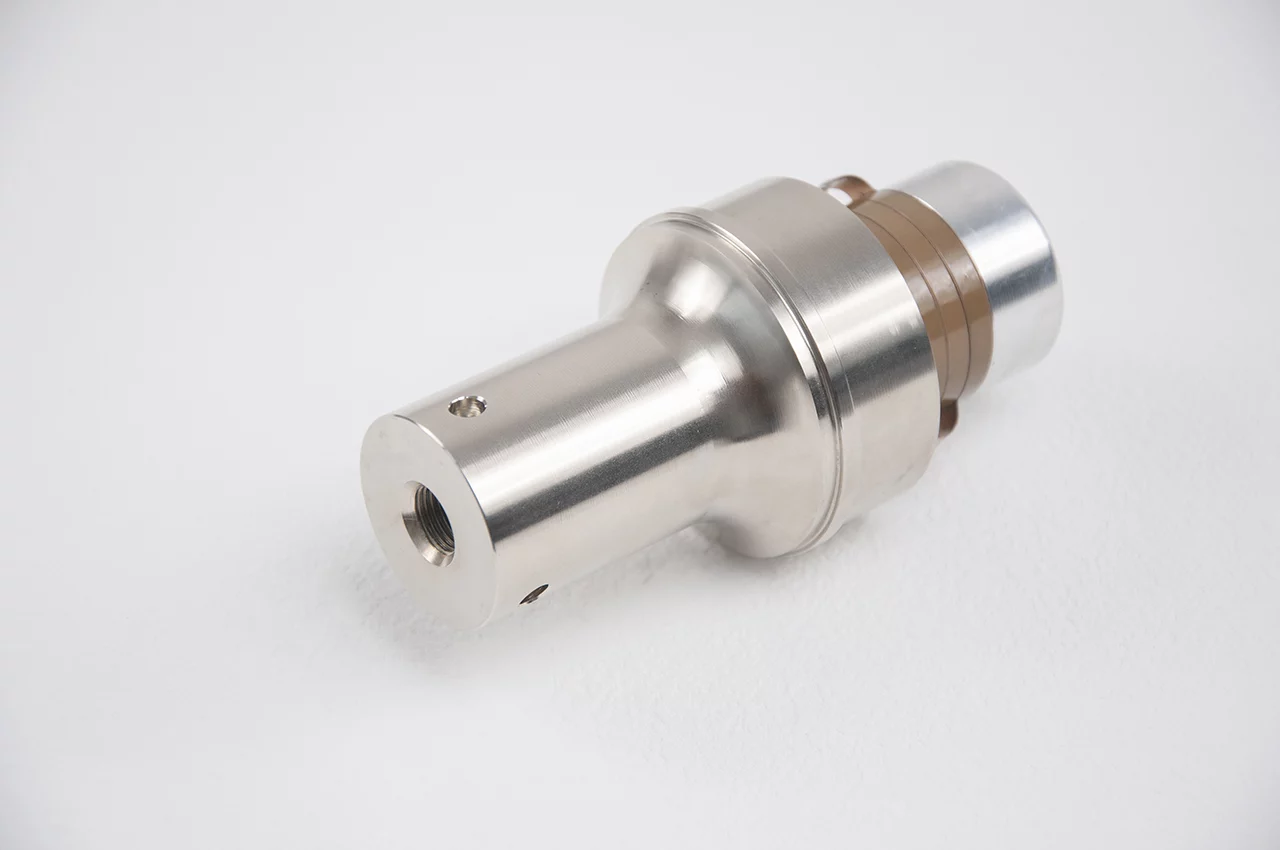

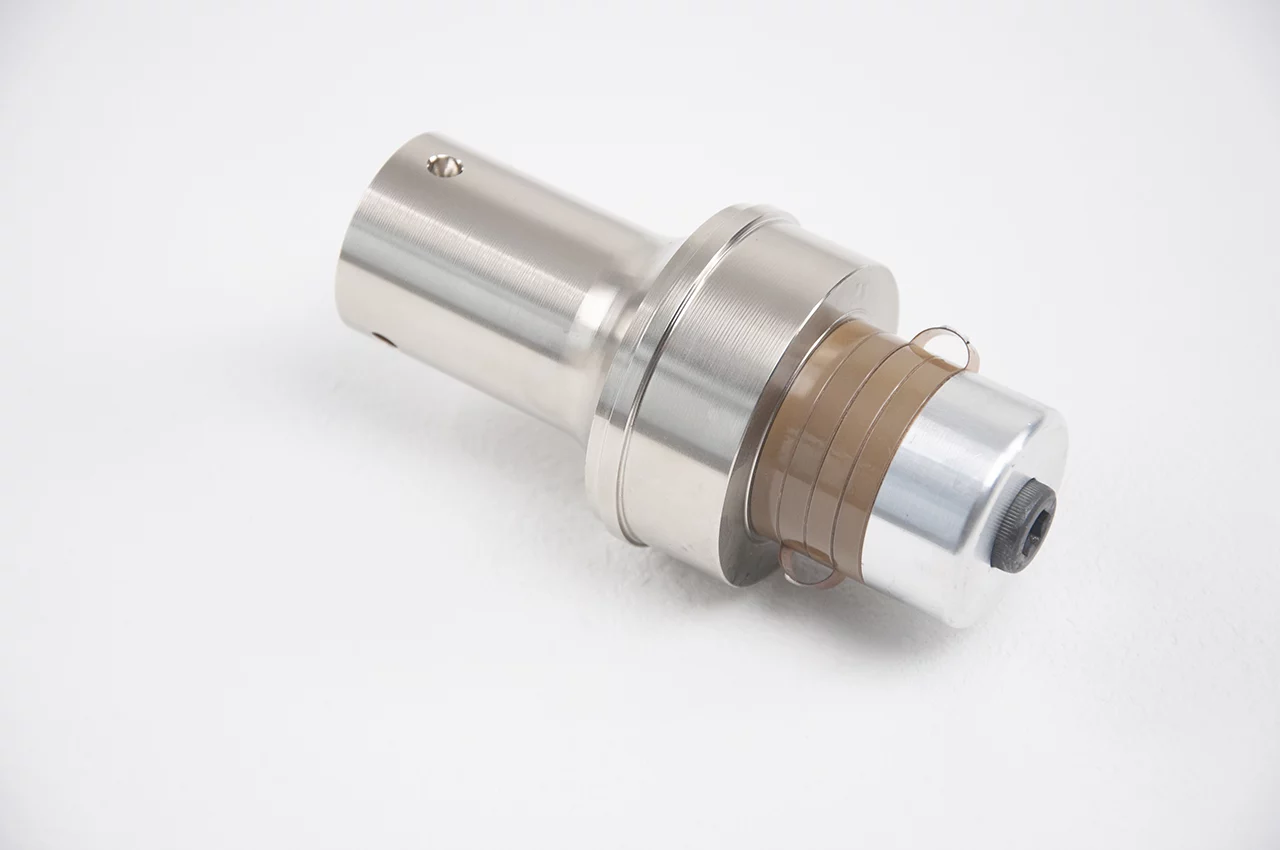

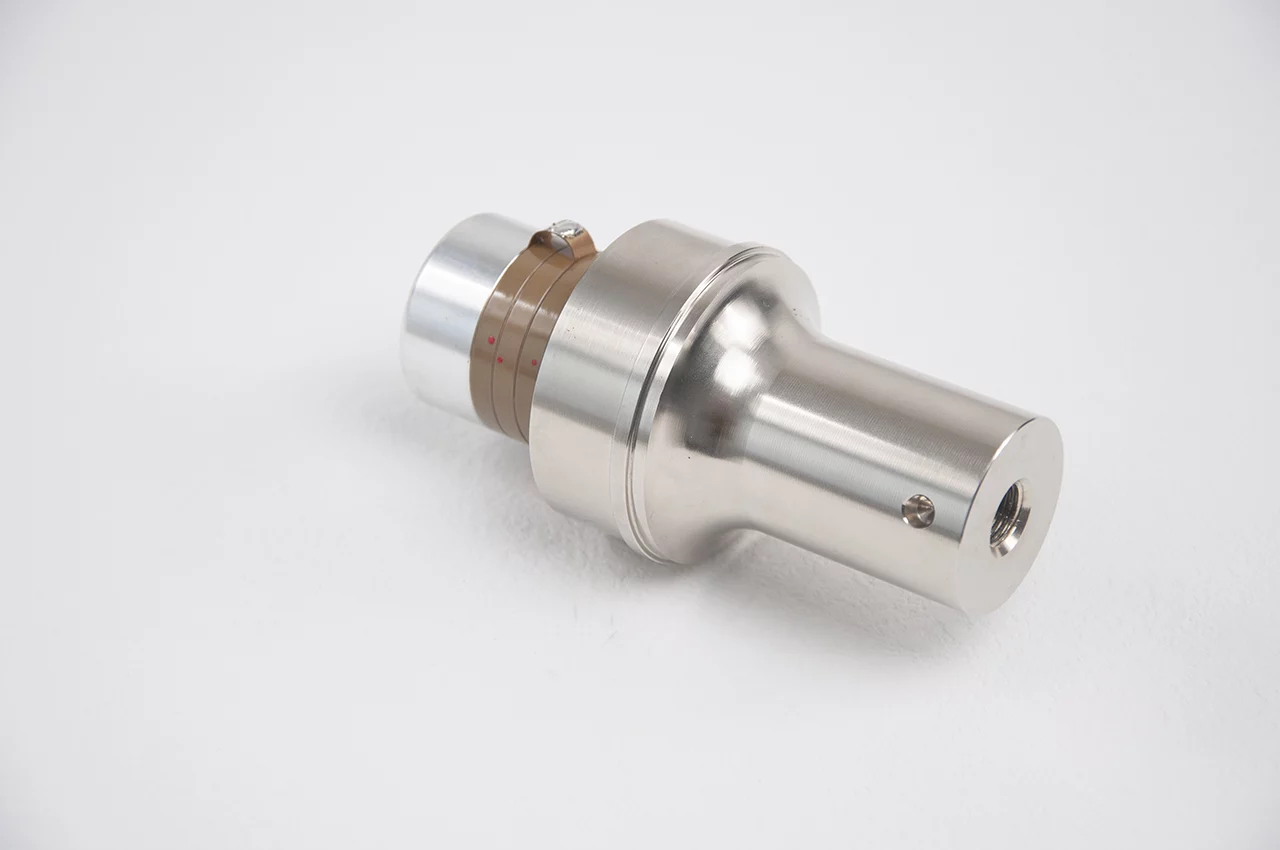

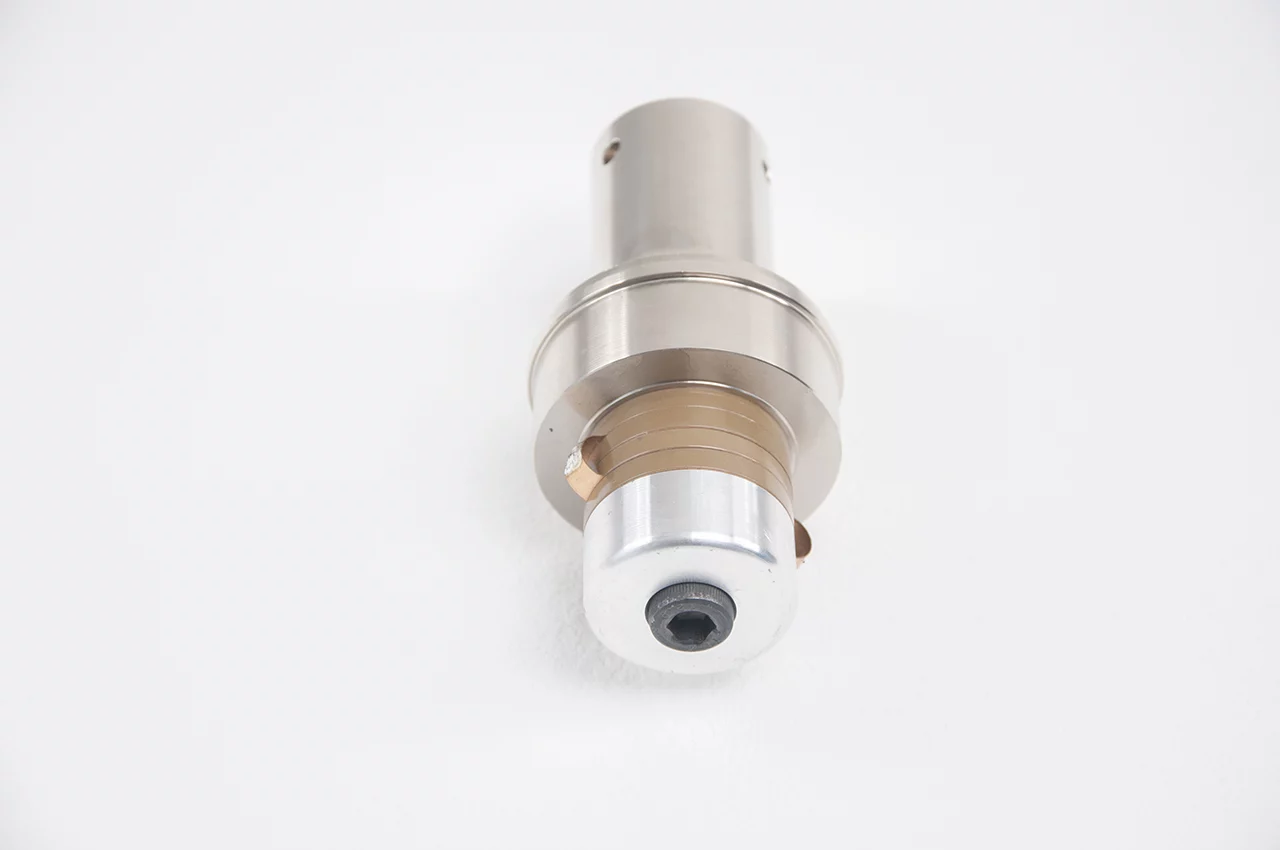

20kHz 1200Watt Branson 900 Replacement

$260.00

13% Off

  • Fully compatible with all 20KHz 900 series 500 and 1200 watt Branson® Ultrasonic Welders
    For Branson® 905 and 910D/DA/M/MA power supplies and Branson® Ultrasonic Welder model 910IW and 910IW+
  • Poreless, high-density, military-grade piezoceramics
  • Excellent electro-acoustic conversion efficiency
  • Minimal thermal dissipation and power losses
  • Large range of working temperature &low resonance impedance and heat productivity
  • Easy to installation & High reliablity
  • For bulk order price please contact our sales expert.
Categories: Tags: , SKU: Branson-900-Replacement

Description

Technical Details

Electrical Specification Data Result
Transducer Model No.: 20kHz 1200Watt Branson 900 Replacement
Frequency (Fs ± 0.5kHz) 20 kHz
Transducer’s Maximal Diameter:
Maximum Height /Length:
Φ63 mm
128 mm
Flange Size: Φ60 mm
Piezoceramic Ring Diameter (mm) Φ40 mm
Piezoceramic Ring Quantity (pc) 4 Pcs
Impedance (Ω) Transducer : 4 Ω
Capacitance (C±10%pF) 8400 pF (P8 )
Input Power (Watt) Max Rated Power: 1200Watt
Amplitude (μmp-p) Transducer : 12 μmp-p
Front Mass Metal Cemented Carbide
Back Mass Metal Aluminum Alloy
Joint Bolt /Gain size 1/2″ , 20
Net Weight (gram) 677 gram
Total Height /Length (mm) 128 mm
Remarks:
Available optional accessaries:
Ultrasonic Generator (CE)
Aluminum Booster
1:0.6 Gain
1:1.0 Gain
1:1.5 Gain
1:2.0 Gain
Titanium Horn /Sonotrode
Horn Materials: 40CrNimoA or Titanium Alloy
Friendly Reminder

* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.

* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.

* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.

for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.

Additional information

Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
