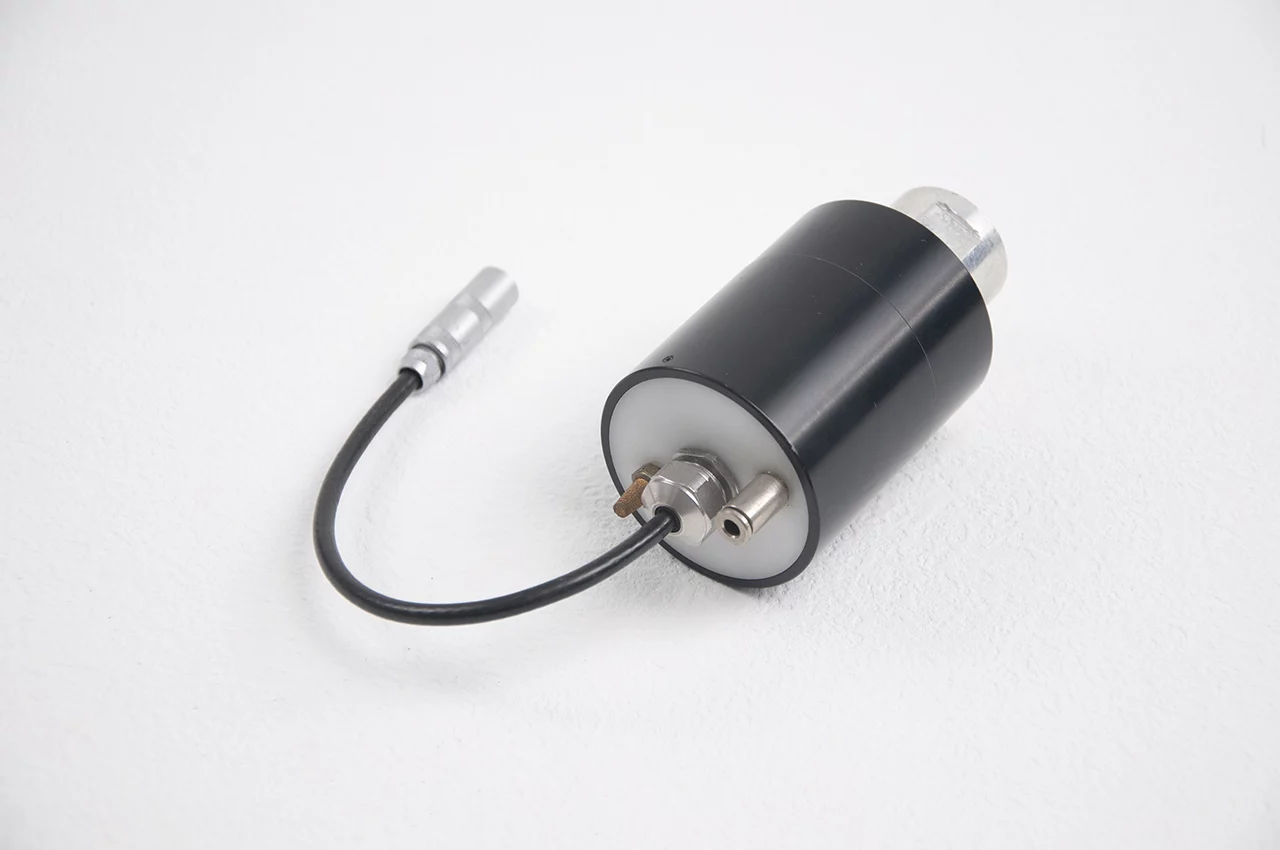

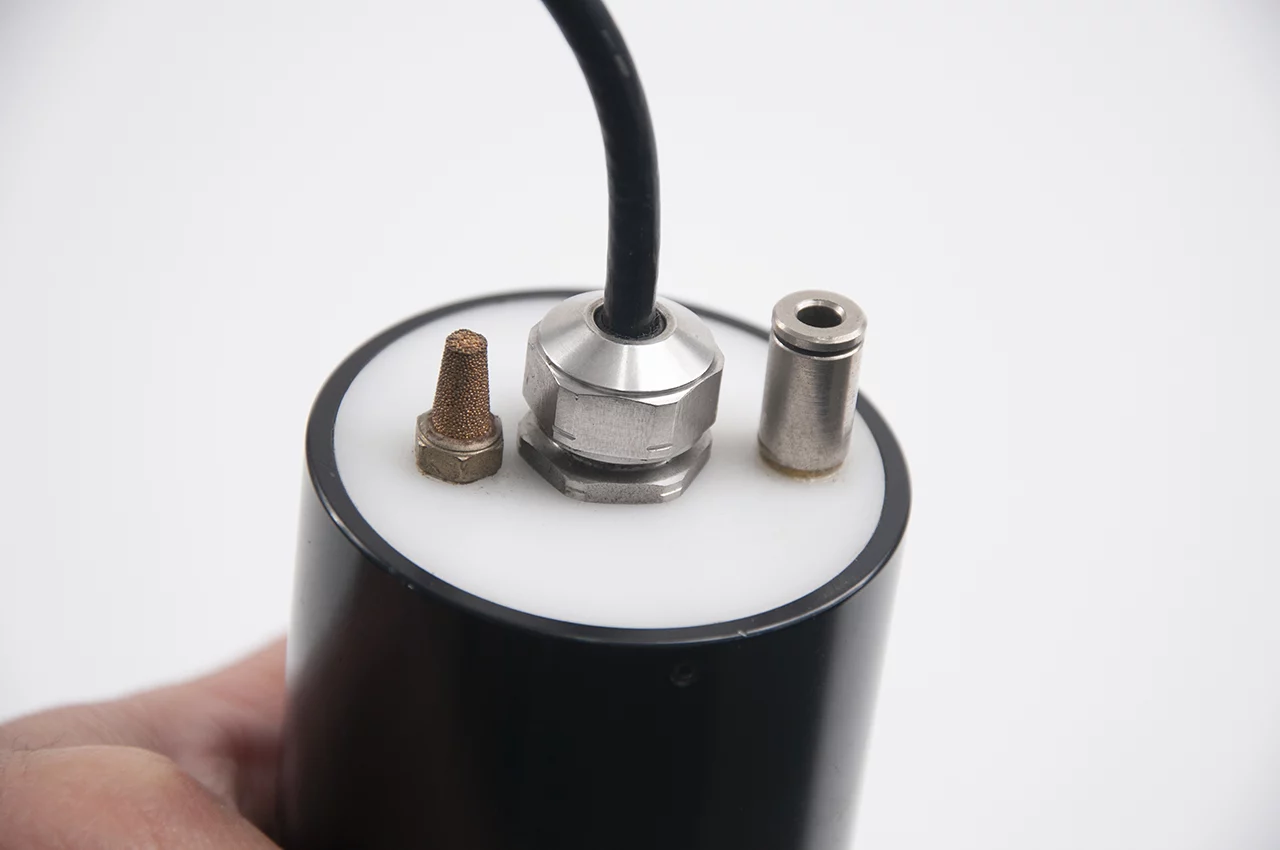

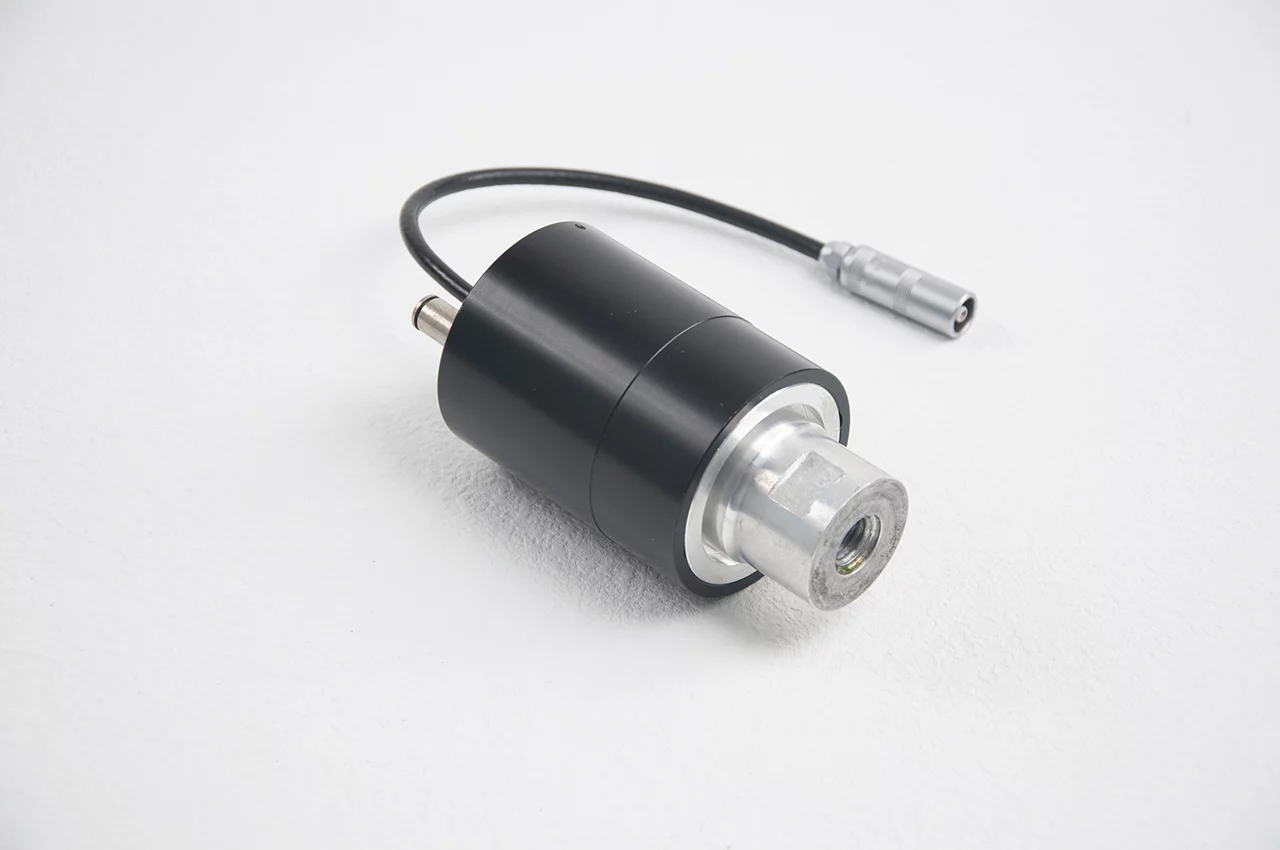

Telsonic 36kHz 1000watt Replacement

$250.00

11% Off

  • Redesigned Telsonic 36k 1000w transducer
  • more powerful, 1200w (original one 1000W)
  • more capacitance 5230pF(original one 2670pF)
  • low Impedance 5.0Ω (original one 46Ω)
  • Wide Bandwidth: 35kHz ~ 38kHz
Categories: Tags: , SKU: Telsonic_36kHz_Transducer

Description

Technical Details

Electrical Specification Data Result
Transducer Model No.: Telsonic 36kHz 1000watt Replacement
Frequency (Fs ± 0.5kHz) 36 kHz (working 34.5k – 37k)
Transducer’s Maximal Diameter:
Maximum Height /Length:
Φ50 mm
68 mm
Flange Size:
Piezoceramic Ring Diameter (mm) Φ38 mm
Piezoceramic Ring Quantity (pc) 2 Pcs
Impedance (Ω) Transducer : 5 Ω
Capacitance (C±10%pF) 5230 pF
Input Power (Watt) Max Rated Power: 1000Watt
Amplitude (μmp-p) Transducer : 5 μmp-p
Front Mass Metal Cemented Carbide
Back Mass Metal Aluminum Alloy
Joint Bolt /Gain size M12   default M12
Net Weight (gram) 298 gram
Total Height /Length (mm) 68 mm
Remarks: Available optional accessaries:
Titanium Horn /Sonotrode
Ultrasonic Generator (CE)

Impedance Analysis Chart

Impedance Analysis Chart
Friendly Reminder

* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.

* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.

* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.

for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.

Additional information

Weight 0.5 kg
Dimensions 7 × 5 × 5 cm
Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
